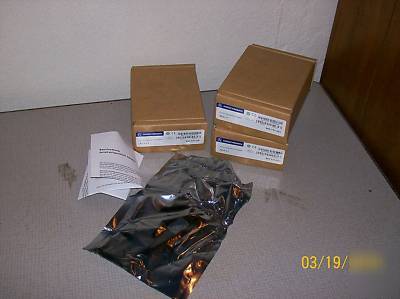

> Three hirschmann auto config. adapter aca-11
Three hirschmann auto config. adapter aca-11
Industrial Networking:Industrial Ethernet:System Accessories:Adapter cable
Hirschmann Automation and Control GmbH
Description The ACA 11 auto-configuration adapter saves the configuration data of the
It enables managed switched to be easily comissioned and quickly replaced.
To the RS232 interface on the switch RJ11 connector
Operating voltage via the RS232 interface on the switch
Diagnostics writing to ACA, reading from ACA, writing/reading not OK;
(display using LEDs on the switch)
Configuration via the RS232 interface of the switch and via SNMP/Web
Operating temperature 0 C to +60 C
Storage/transport temperature -25 C to +70 C
Relative humidity (non-condensing) 10% to 95%
MTBF 370.9 years; MIL-HDBK 217F: Gb 25 C
Dimensions (W x H x D) 90 mm x 27 mm x 12 mm
IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration 1 g, 10 Hz - 150 Hz, 30 cycles
EN 61000-4-2 electrostatic discharge (ESD) 6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field 10 V/m
Safety of industrial control equipment cUL 508 (E175531)
Hazardous locations cUL 1604 Class 1 Div 2 (E203960)
Germanischer Lloyd Germanischer Lloyd (43 109-02 HH)
Scope of delivery and accessories
Scope of delivery device, operating manual
