> Cincinnati 60 ton 3-axis cnc hydraulic press brake
Cincinnati 60 ton 3-axis cnc hydraulic press brake

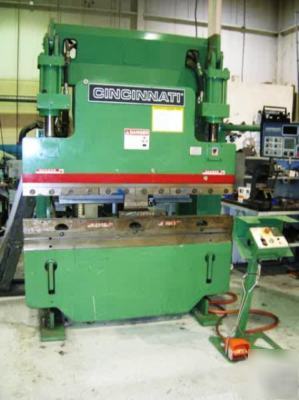

#1490 Cincinnati 60 Ton 3-Axis CNC Hydraulic Press Brake
Maximum Tonnage Capacity 60 Ton
Max. Tonnage @ High Form Speed 25 Ton
Overall Length Of Bed & Ram 6'
Distance Between Housings 4'6"
Throat Depth (Extra Throat) 10.5"
Bending Capacity 3/16" x 5'
Stroke Length 8"
Open Height 15"
Shut Height 7"
Forming Speeds (Inches/Min.) 10-35-70
High Speed Approach 180 IPM
Main Motor 7.5 HP
2-Axis SX Back Gauge (X-24", R-8")
Programmable Ram Depth Control (Y-Axis)
Machine Location: Philadelphia, PA
