> Agilent/hp 16715A 68 channel timing/state module card
Agilent/hp 16715A 68 channel timing/state module card

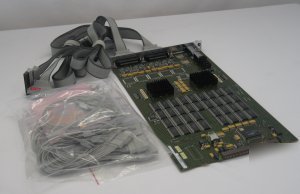

Agilent/HP 16715A 68 Channel Timing/State Module Card Used
Model/Part No:16715A Our Item ID: 2562
Sold as pictured We are unable to test this item. No other tests have been perfomed. Due to limited testing capabilities we are only offering a DOA warranty
Agilent/HP 16715A 167MHz State/667MHz Timing Card
The Agilent HP 16715A is a reconditioned State and Timing Module that offers high performance state and timing analysis features for your future digital designs. 2M of acquisition memory is available on each channel to capture the information you need to link the symptom of a problem with the cause. Utilizes Agilent's breakthrough VisiTrigger technology.
Up to 340, 2M deep channels simultaneously
Each module offers 68 channels with 2M memory depth per channel.
Half channel timing mode provides up to 4M memory depth per channel.
Connect up to five modules together for a 340 channel system.
Enhanced troubleshooting with a variety of display modes
Display your state and timing measurements as a listing, waveform, chart, or a distribution over time.
Markers placed in one display are automatically updated in the other display modes.
The Compare tool lets you perform a bit by bit comparison between acquired state and/or timing data and a reference trace
Item Tested?: Not TestedPhysical Condition: Good; Working Condition: Not Tested, or Unable To Test15 | 20x 10x8 | 1
