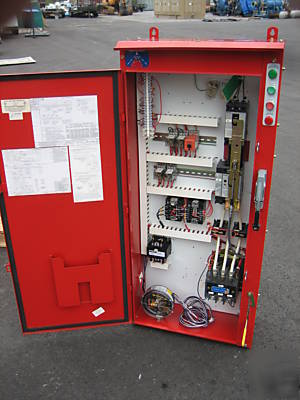

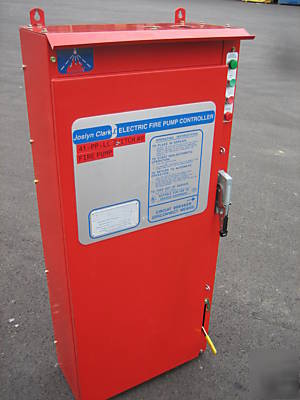

Joslyn clark fire pump controller 75 hp C3C194-4 460 v
Maximum Water Pressure 300 PSI
Suitable for use on circuit capable of delivering 100,000 Symm. Amps RMS
Bul 7707 Type TM Fire Pump Contactor, Cat. No. A77-358454A-4, FLA 180A, 600V Max, 3 Phase, 100 HP @ 380 Volts
Coil: TB162-3, 440-480 V, 60 Hz 400-440 V, 50 Hz
Siemens Molded Case Switch, Cat. No. / Model ED63S125A, 125 Amps, Type ED6, 3 Poles
Siemens Motor Circuit Interruptor, Cat. No. ED63A125, 125 Amps, 600 AC Max Volts, Type CED6-ETI with Instantaneous Trip Adjustment
with Control Terminal ITE Accessory, Cat. No. S01ED60, Shunt Trip, Coil Rating = 0.395 Amps, 120 Volts, 60 Hz
Siemens Industrial Control Transformer, Cat. No. MT0150A, 150 VA, 50/60 Hz
Mercoid Mercury Switch, Type DA-31-153-9, Spec. 1325, S/N T34L-167375-00, 2 Amp @ 240 V AC/DC, 1/8 HP AC
2x CTs (Current Transformers), 1275F197
Joslyn Clark Phase Reversal - Loss and Voltage Relay, Part # A10-457286A-6, 460 Volts, 50/60 Hz, Pilot Duty Rating 480VA @ 240 VAC
Joslyn Clark Locked Rotor Protector (LRP), Part # A10-456443A-4, Pilot Duty 240 VAC Max., 400 HP @ 575 Volts
4x Eagle Signal Controls, 30D3CA12002 H0, 120 V, 50/60 Hz, Contact Rating: 5 Amp, 28 VDC, 250 VAC
Eagle Signal Controls, 80E2A611 on Delay F0, 120 V, 60 Hz
Joslyn Surge Arrester, Surge Tec Cat. No. Z-650, 48-62 Hz, 650 Volts Max.
