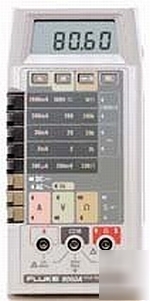

Fluke 8060A true rms handheld digital multimeter
* 4 digit (20,000 count) resolution
* Fast audible/visual continuity tests
* Relative reference (offset)
* Low-power ohms all resistance ranges
* Constant-current diode test mode
* Measure resistance to 300 Mohm
* True-rms ac voltages to 100 kHz
* Frequency Counter...12 Hz to 200 kHz, functional to 700 kHz
* dBm or relative dB measurements
* Ranges: 200 mV, 2V, 20V, 200V, 1000V
* Resolution: 10 V on the 200 mV range
* Input Impedance: 10 Mohm on all ranges, >1000 Mohm selectable for 200 mV and 2V ranges
AC Voltage (True-RMS, AC Coupled)
* Ranges: 200 mV, 2V, 20V, 200V, 750V
* Input Impedance: 10 Mohm, <100 pF (dBm mode also)
Fluke's 8060A 4-1/2-digit/20000 Count DMMs offer more measurement capabilities than many bench/portable models. Well suited for engineers and technicians working in audio, video, telecommunications, or computer technology, this meter combine precision and accuracy with a wealth of features to fit nearly every application.
