7414 clausing model CL40122 40" x 122" cnc lathe 2007

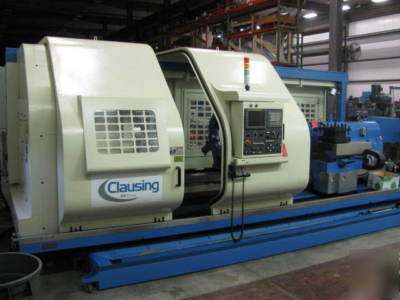

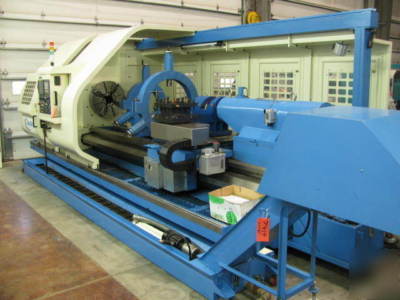

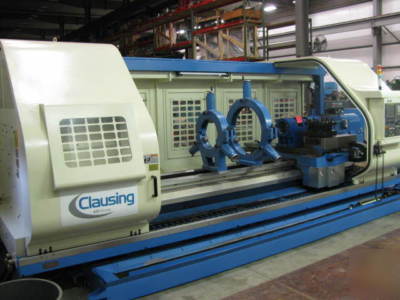

007414 CLAUSING Model CL40122 CNC Lathe, 2007
Year: 2007 (Installed New in 2008)
Maximum Weight Between Centers 11,000lbs., (13,200 w/ Steady Rest)
Maximum Weight Unsupported 5,500lbs
Spindle Front Bearing ID 7.87
Headstock 4-Speed, Auto Select
Spindle Motor- Variable AC 40/50 (Cont./30 min.)
X-Axis Ball Screw Diameter 1.57
Z-Axis Ball Screw Diameter 2.48
X & Y Encoder Feed Back Rotary
Center Height From Floor 46.77
Turret Type 4 Station, 4-Way Block

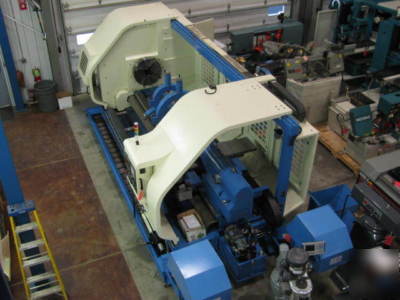

Machine Footprint 106 x 300 (W x L) with Chip Conveyors
* Front & Rear Belt Type Chip Conveyors
* Electrical Cabinet Refrigerator
* Spindle Oil Cooling System
* Four Range Automatic Vari-Speed Drive
* Digital AC Servo Drive System
* Z-Axis Absolute Servo Motor
* Steel Ballscrew Cover on Z-Axis

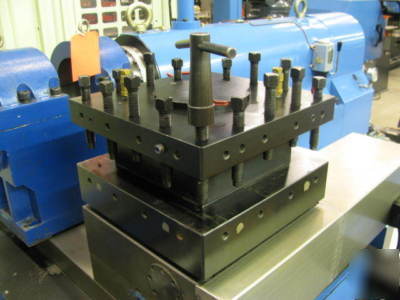

* 4-Position Automatic Block Type Turret

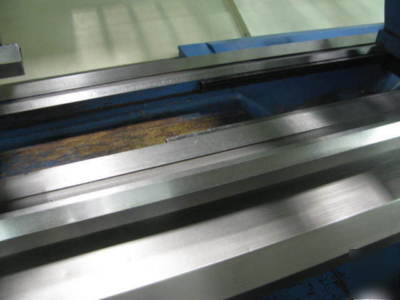

* 22 Bed Width with Hardened and Ground Ways
* Programmable Hydraulic Tailstock

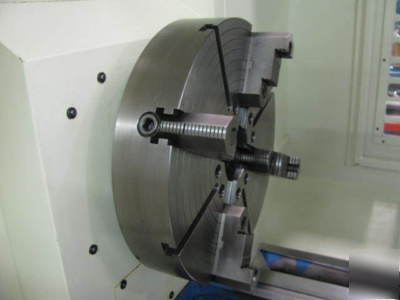

* 6.02 Spindle Bore Standard
* Automatic Lubrication System
* CE Telemechanique Electrics
* Full Guarding with Interlock
