15 deg stepper motor dbl/shaft -cnc router mill robot

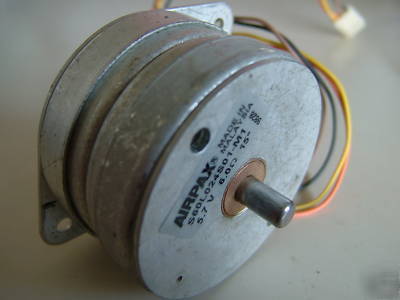

4 wire bipolar DOUBLE SHAFT Stepper Motor
Thomson Airpax Mechatronics S60L024S01-M1
5.7V winding resistance 6 ohm or 12V winding resistance 26 ohm
15 degree / step 24 steps per revolution
Holding torque 141 mN.m / 20 oz-in

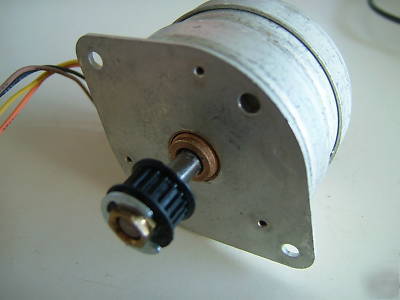

Dimensions: 59mm diameter, 37mm height, axle diameter 6.3mm, length 16mm axle sprocket 19 teeth, clamping screws M4 at 67.5mm spacing.
Motor information link: http:// /en/Products/Design/airpax/smh29.pdf
