> Berkel X13 manual slicer, 13" diameter knife, gauge pla

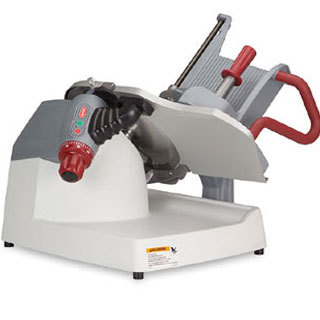

Berkel X13 manual slicer, 13" diameter knife, gauge pla
Manual Slicer, 13" Diameter Knife, Gauge Plate
One Year Limited Warranty, parts and labor -view pdf
Food Slicer, gravity feed, manual, 13" dia. s/s knife, gauge plate interlock, table mounted sharpener, permanent knife guard, kick stand, product fence, cord & plug, 1/2 HP
* Berkel manual gravity feed slicer
* A sanitary one piece engineered polymer base and product table reduces seams and joints while providing an FDA approved surface for easy, effective cleaning
* Removable and submersible table mounted sharpener with diamond crystal stones for accurate sharpening. Completely mechanical, gauge plate interlock
* Precise thickness control is achieved using a variable pitch barrel cam with ultra-fine adjustment in the first revolution and opens to a thickness of 1-5/16" (34 mm) for accurate and consistent slicing
* Base, product table, pusher, support arm and upper housing are constructed of FDA approved, engineered polymers reducing the number of seams. Gauge
* plate and center plate are anodized aluminum. All controls are sealed and located out of the drip zone
* A permanent ring guard protects the entire non-slicing portion of the knife
* during slicing and cleaning
* 1-speed, 1/2 HP, permanently lubricated ball bearing knife motor with thermal protection
* Furnished in 115/60/1, 7 amps, AC, with 3 wire cord and plug
* LED indicates power to the slicer
* One-piece FDA polymer base and product table for reduced seams, accessibility and easy cleaning
* 13" (330mm) diameter, hollow ground, hardened and polished forged stainless steel knife
* Large product table with extra capacity: Rectangles up to 10 1/2" x 6 3/4" (265 mm x 170 mm)l Squares up to 7 1/2" (190 mm) Rounds up to 8 1/2" (220 mm) diameter
* Articulating and full length rear mounted meat pusher to secure and advance products evenly
* Ergonomic, multi-grip handle to advance product table
* Submersible, removable product table mounted sharpener for consistent sharpening and easy cleaning
* Diamond crystal sharpening stones for fast, accurate sharpening and extended life
* No-volt release requires restarting the slicer after a power interruption
* Permanent ring guard protects entire non-slicing portion of the knife
* Sealed start/stop switches conveniently located on the index knob housing out of the food zone
* Mechanical interlock for reliably securing the gauge plate during cleaning
