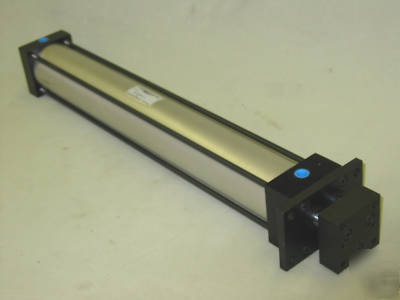

Air cylinder, tierod, 2 1/2" bore x 18" stroke, tri rod
AIR CYLINDER TIE ROD STYLE, 2 1/2" BORE X 18" STROKE
TRD MANUFACTURING INC. [DIVISION OF BIMBA] #TRA-MF1-2.50-18-MPR

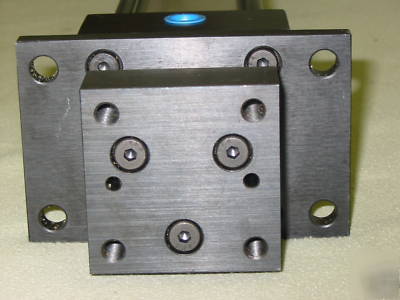

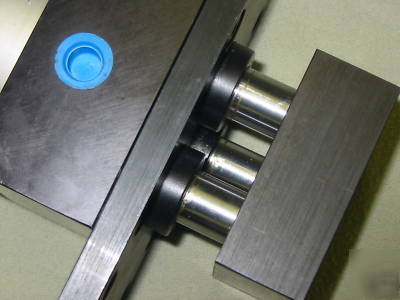

THIS CYLINDER HAS 3 RODS THAT ARE ATTACHED TO A MOUNTING PLATE THAT IS 1" X 2 1/2" X 2 1/2"
MOUNTING, FRONT FLANGE OR SIDE MOUNT, CAN ALSO BE MOUNTED FROM THE END
DIMENSIONS, OVER ALL LENGTH 23 7/8", BLOCK TO BLOCK 22 1/16", FLANGE 3" X 4 5/8"
