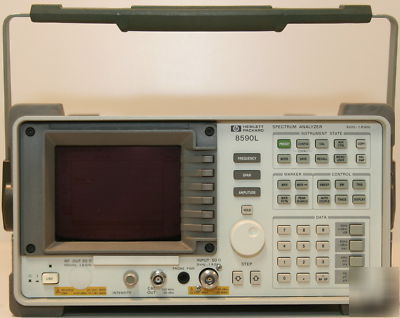

Agilent/hp 8590L spectrum analyzer 9 khz-1.8 ghz works
HP 8590L Option 041Portable Spectrum Analyzer 9 kHz to 1.8 GHz
The HP 8590L is a low cost, but full-featured, frequency accurate RF spectrum analyzer designed to meet your general purpose measurement needs. The easy-to-use interface provides access to more than 200 built-in functions.
* Frequency counter: Eliminate the need for a separate frequency counter with the built-in frequency counter-with 2.1 kHz accuracy at 1 GHz ( 7.6 kHz from 0 to 50 C)
* Multiple resolution bandwidth filters: Optimize the tradeoffs of speed, sensitivity and the separation of closely spaced signals with your choice of 10 resolution bandwidth filters beginning at 1 kHz
* 145 dB amplitude measurement range: Measure signals directly with -115 dBm to +30 dBm amplitude measurement range
* One-button measurement routines: Save time, setup, and training with one button measurement routines such as Adjacent Channel Power, signal bandwidth and Third Order Intercept (TOI)
* Phase noise of 105 dBc/Hz at 30 kHz offset: Uncover small signals close to carriers with an internal phase noise that will not get in your way
* Dual interfaces: Operate remotely and print directly with the optional dual interfaces that combine either an GP-IB or RS-232 port with a parallel (Centronics) port
* Built-in tracking generator: Measure the scalar characteristics of your components with the optional built-in tracking generator and the Agilent 85714A scalar measurements personality
* Frequency reference: 2 parts in 10-6
* Frequency span: 10 kHz to 1.8 GHz
* Frequency sweep time: 20 ms to 100s
* Resolution bandwidth: 1 kHz to 3 MHz in 8 selectable ranges
* Input attenuator range: 0 to 60 dB in 10 dB steps
* Option 041 = HP-IB and parallel interfaces
HP 8590L Series Product Overview
