50" x 236"cc dalian dmtg engine lathe

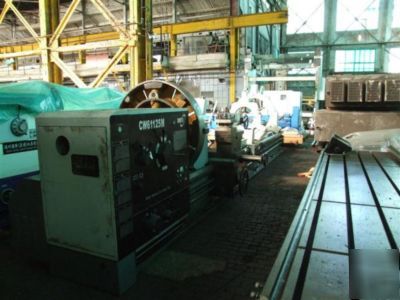

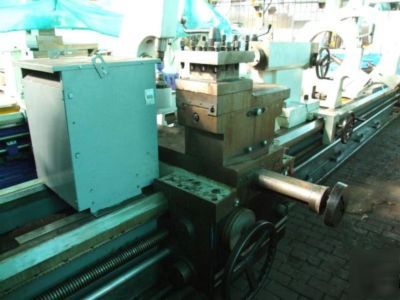

(1)Used 50 x 236 cc DALIAN DMTG Engine Lathe, Model CW61125M/6000, S/N G013, new 2008
Max. swing over bed 49.21 Max. swing over cross slide 34.65 Max. turning length 228.35 Max. center distance 236.2 Spindle nose A2-15 Spindle bore 5.12 21 forward spindle speeds 3.15 315 RPM 12 reverse spindle speeds 3.5 291 RPM Width across bed ways 29.53 Max. load unsupported 11,000 lbs. Travel of cross slide 26.38 Travel of top slide 11.81 Max. dimension of tool shank 1.77 x 1.77 Swivel of top slide 90 Tailstock quill diameter 6.3 Tailstock quill taper Metric 80 Tailstock quill travel 11.81 (56) cross feeds .004 - .472 IPR (56) longitudinal feeds .002 - .236 IPR Compound slide feed .00098 - .118 IPR Longitudinal rapid traverse rate 147 IPM Cross rapid traverse rate 74 IPM Compound slide rapid traverse rate 37 IPM Thread range: Inch: - 28 T.P.I. Metric: 1 120 mm Module: 0.5 60 mm Diametral: - 38 DP

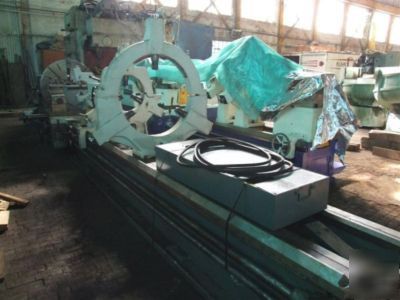

EQUIPPED WITH: Induction hardened bed ways Thread dial Live center Swivel compound Power drive to top slide 6-way power rapid traverse 49 Dia. 4-jaw chuck 32 cap. roller steady rest 17 cap. roller steady rest Follow rest Inch/Metric threading Work light Pan bed and coolant 30 H.P. 3/50/380 Volt motor with controls Input voltage with transformer 3/60/440 Volt
Dimensions: 352.4 L x 77 W x 75.2 High
Price: F.O.B. Truck, Wilmington, DE $ 59,500.00
