> 12' x 1´´ bertsch initial pinch type plate bending roll
12' x 1´´ bertsch initial pinch type plate bending roll

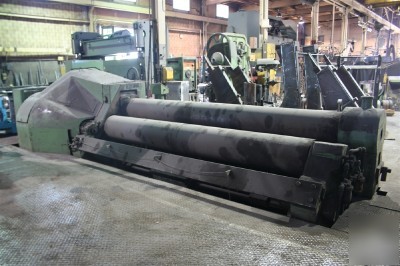

12' X 1 BERTSCH INITIAL PINCH TYPE PLATE BENDING ROLL
SERIAL ........................... 8525
MODEL ............................ #18
OVERALL LENGTH OF ROLLS........... 12'
CAPACITY ......................... 1 MILD STEEL
DIAMETER OF ROLLS ................ 17-1/2
POWER REAR ROLL ADJUSTMENT ....... YES
POWER FRONT ROLL ADJUSTMENT....... YES
AIR DROP END ..................... YES
VARIABLE ROLL SPEED .............. YES
FRONT ROLL ADJ MOTOR ............. (2) 2 HORSEPOWER
REAR ROLL ADJ MOTOR .............. 25 HORSEPOWER
MAIN DRIVE MOTOR ................. 50 HORSEPOWER
