Waste oil transfer/filtration pump,biodiesel,wvo,svo

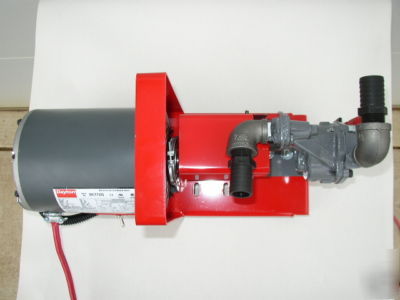

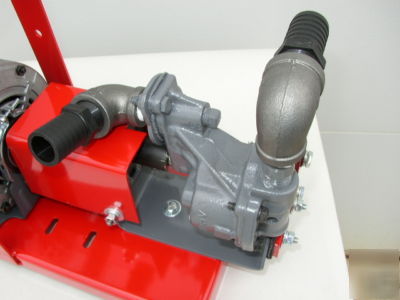

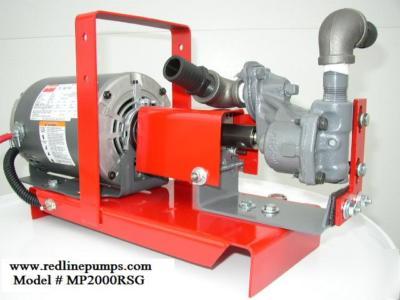

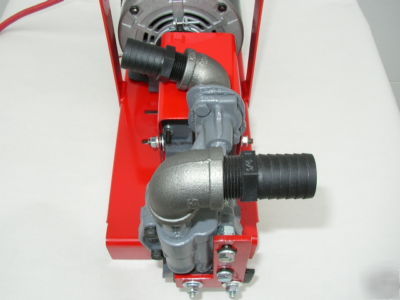

FOR MORE INFORMATION ABOUT OUR PUMPS, SEARCH REDLINEPUMPS ON THE WEB OR CALL 1-(***)-881-3473. This is our Heavy Duty MP2000RSG 110 Volt Transfer/Filtration System which features a high quality 1/3 HP 110 volt motor. This system is MADE IN THE USA and comes with a full 1 year warranty! We build this unit here in our shop in Watertown, SD and handle all service or warranty work here. Other features this redlinepump offers include our 45 PSI cast iron pumping unit with steel gears, a 2:1 speed reducer gear box which increases the pumps power, a heavy duty steel frame with carry handle, and a power cord with plug end. This pump has a built in bypass system which allows the user to use a trigger nozzle or a filtration system on the pressure side of the pump. The pump can run while the output flow is cut off. Output rates vary with the type of oil and it's temperature. Diesel pumps at 10 GPM. WVO at room temperature will pump at 7-8 GPM. 15w40 diesel engine oil will pump at up to 7 GPM when it is above 60 degrees in temperature. These pumps are better than other pumps because they have the power to self prime with long suction hoses (20 feet or more) and are portable. It is better to have shorter suction hoses when possible because longer suction hoses will slow your flow rate. Another huge plus this pump offers is NO DUTY CYCLE! You can use it as long as you like without having to shut it off to cool. Other pumps you may see have duty cycles of 20 minutes or less. If you run them past their duty cycle their cheap little motors melt. Many of them were never intended to pump any type of oil. Just water or diesel. Thin, easy to pump liquids- not thick oil. Again, redlinepumps are purpose built to move waste oil. They have a cast iron positive displacement gear pump instead of a cheap rubber flexible impeller or light duty composite or plastic blades that run inside of round chamber. As far as durability goes, a gear pump is best. All you need is a 1000 micron screen to keep out larger debris. 1000 micron is equal to screen door screen. Small vegetable matter (1000 Micron and smaller) has no effect on our gear pumps. Many other pumps you may find have to be screwed into a 2" bung on a barrel in order to suck out the oil. This is very inconvienient when you need to move the pump around to remote locations. With our system, you can put the pump where you want to and roll out a suction hose to your oil source and pump out the oil. A redlinepump is a purpose built system which makes oil transfer fast and easy. Also, with our pumps 2:1 speed reducer, you"ll have the power you need to transfer oil even when it's thick. With the 2:1 speed reducer, the motor turns at 1800 rpm and the pumping unit turns at 900 rpm. Other pumps on the market do not offer this. This is why they fail when you try to pump a heavy or thick oil with them. Their pumping units and motors turn at the same speed. No good for the tough jobs like oil filtration or cool weather oil transfer. This system uses 3/4" ID hose but can be set up for 1" ID hose. It can lift oil 15 feet. We offer suction hose for $1.50 per foot and oil resistant outlet hose for $2.60 per foot. Suction wands with screens are $30.00. We offer a full line of accessories on our site. Please call 1-(***)-881-3473 with any questions. Thanks, redlinepumps David L. Miller
