> New sencore SL753D channelizer signal meter battery

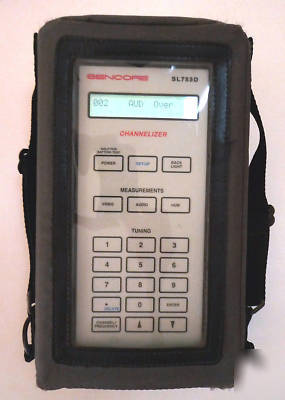

New sencore SL753D channelizer signal meter battery

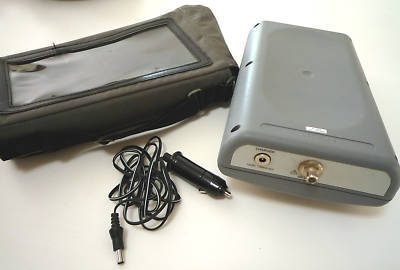

"The Cadillac of Meters!" Hand-held signal level test meter capable of tuning by frequency or channel from 5-810 MHz including sub-band and UHF channels. Tests signal levels from -35 dBmV to +60 dBmV. Recently upgraded with new & higher capacity battery pack. Comes with protective case and charger (not pictured).
* All channel/frequency tuning from 5 to 863 MHz including UHF and optional sub-band to meet your system testing needs
* Auto attenuation across the entire -35 dBmV to +60 dBmV measurement range enabling you to make measurements anywhere in your system
* Easy-to-use, one button operation with a digital display of the key signal parameters (Video, Audio and non-intrusive Hum) for system testing without interpretation errors
* Pre-programmed with standard cable, IRC, HRC, VHF, UHF channel plans or can be easily customized to your testing needs.
* Hand-held, rugged and weather proof designand back-lit digital display for easy viewing in low light conditions.
* Tuning Range : Channel Plans: FCC (std) HRC, IRC, VHF/UHF, PAL A, PAL B/G, PAL I, Belgium, German, Israel, Japan, Cust. 1 & 2
* Channel Step Size : 1 Ch. (6 MHz)
* Frequency Step Size : 50 kHz
* CATV Bands Channels : 2 thru 127 (CH 1 in HRC & IRC)
* Frequency : 50 thru 810 MHz
* VHF/UHF Band : CHANNELS: 2 thru 69; FREQUENCY: 50 thru 810 MHz; SUB-BAND (optional): Channels T7 thru T13; FREQUENCY: 5 thru 50 MHz; TUNING ACCURACY: Channel & Freq. 10 PPM (? 10 kHz)
* RF Input : SENSITIVITY: -35 dBmV; INPUT IMPEDANCE: 75 Ohm; MAXIMUM RF INPUT: 100 VDC or 100 VRMS
* Video Carrier Level : AMPLITUDE RESOLUTION: 0.1 dB; AMPLITUDE ACCURACY: CATV and VHF; ? .0.75 dB Flatness 5 to 750 MHz; ? 0.75 dB, Level Linearity -35 to +60 dBmV; TYPICAL: 1.0 dB total; TEMPERATURE: All Bands ? 2.5 dB, 0 Deg. F to +120 Deg. F
* Audio Carrier Level : AMPLITUDE RESOLUTION: 0.1 dB; AMPLITUDE ACCURACY: CATV and UHF: ? 1.0 dB Flatness 5 to 750 MHz, ? 1.0 dB Level Linearity -35 to +60 dBmV; TYPICAL: ? 1.5 dB total
* Hum Measurement Range : 0.5 to 10.0%
* Hum Measurement Accuracy : 0.5%; 1% after 5%
* Power Requirements : 120 VAC, 12 VDC
* Charger : 14 V at 700 mA ( 12 V min, 17 V max)
* HWD Size : 10.2 x 5.1 x 2.4 inches
Condition: Used and in complete working order. Batteries are new and upgraded to higher capacity.
