> New alicat scientific m-50SLPM-d-i-cpt mass flow meter

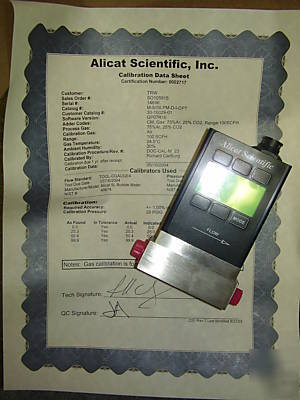

New alicat scientific m-50SLPM-d-i-cpt mass flow meter
100 SCFH RANGE. CALIBRATED FOR 75% Ar, 25% CO2. THIS FLOW METER HAS A 50 STANDARD LITER PER MINUTE RATING. HAS STANDARD 8 PIN MINI DIN CONNECTOR FOR THE FOLLOWING CONNECTIONS: (1) 4-20mA OUT (2) 5.12 VDC OR AUX OUT (3) RS-232 IN (4) SET POINT IN OR REMOTE TARE (5) RS-232 OUT (6) SIGNAL OUT (7) POWER IN (8) GROUND. ALSO FEATURES THE OPTIONAL 6 PIN INDUSTRIAL CONNECTOR FOR THE FOLLOWING CONNECTIONS: (1) POWER IN (2) RS-232 OUTPUT (3) RS-232 INPUT (4) SET POINT OR TARE (5) GROUND (6) AND SIGNAL OUTPUT. THE -CPT ON THE END OF THE PART NUMBER INDICATES THAT THIS IS A SPECIAL METER WITH VERY COMPACT DESIGN. INCLUDES CALIBRATION SHEET.
THIS MASS FLOW METER IS NEW, NEVER USED, IN ORIGINAL BOX AND PACKAGING AND IS GUARANTEED NOT D.O.A.
IF YOU HAVE ANY QUESTIONS, PLEASE CALL (***)-200-0156, OR HIT ASK THE SELLER A QUESTION. (cassi rack)
Estimated Retail Price: $1,100.00
Features and Benefits of Alicat M series mass flow meters
Mass Flow Meter DisplayMeasured Parameters
All measured parameters are displayed in real time on the digital display. Any measured parameter can be brought to the center of the screen. Remote displays are also available. Versatility
Multiple process measurements in one device to reduce the need for other measurement devices.
Response speed can be adjusted by the user to suit the application
Multiple analog & digital outputs to make communicating with the device easier and less costly.
100:1 Turndown ratio allows the flow meter to measure flow at 1/100th of its full scale rating
30-Gas Select on all units reduces inventory requirements
The max flow rate for the mass flow meter does not change, regardless of gas!
"Tare" feature allows the user to zero the unit at any time
Customizable units of measure for added ease of use
Optional Remote Display allows for panel mount of the display with full push-button control in embedded applications
IC-10: This is a 6-pin industrial style locking cable that is 10' in length and has 1 male mating connector. The opposite end is blunt cut with color-coded wires. This cable reduces available analog output signals to one parameter. This option is useful for industrial installations in which the cable must be securely connected to the device
