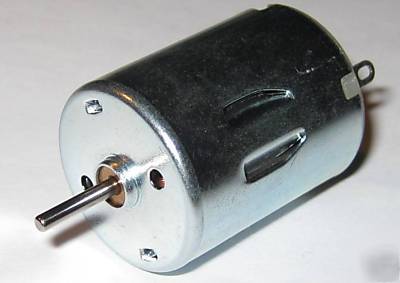

Mabuchi rc-280 motor - 4.5 to 9.6 vdc - 9130 rpm - 6 v
Mabuchi RC-280 Motor - 4.5 to 9.6 VDC - 9130 RPM - 6 VDC
* Recommended operating voltage range 4.5VDC to 9.6VDC
* No load speed is 10,800 RPM
* Full load (maximum efficiency @ 6VDC) performance characteristics:
* Power output: 3.54 Watts
* Dimensions (not including shaft): 30.5 mm long x 23.8 mm diameter
* Shaft dimensions: 10.4 mm long x 2.0 mm diameter
* Features 2 threaded mounting holes on 14 mm centers
* For complete motor specifications, please click this LINK (PDF - 58 kB)
