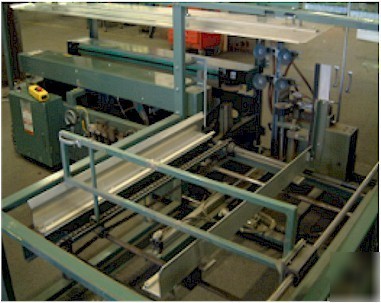

Loveshaw / padlocker model cf-40T case former
Automatic operation presents formed case with taped bottom and open top.
Chain driven powered hopper automatically feeds RSC or HSC cases.
Case magazine accepts up to 150 cases.
Pneumatic bottom flap tuckers / closers.
Easy adjustment and size changeover (scale indicators).
Length 7 inches to 24 inches.
Width 6 inches to 16 inches.
Height - 4 inches to 16 inches.
PRODUCTION SPEEDS: Up to 20 cases per minute depending on case size and quality.
TAPE SPECIFICATIONS: Pressure sensitive 1.5 2.0 in. wide. Up to 15 in. dia. 3 inch core.
VOLTAGE: 115 Volt AC / Single Phase 50 - 60 cycle / 10 Amps.
AIR PRESSURE: 80 P.S.I. at 0.11 CFM per cycle.
DIMENSIONS: Approx. 11.5 feet long x 8.0 feet wide x 6.0 ft high.
WEIGHT: Approx. 1,750 lbs. Uncrated.
