> 24" x 72" x 36" mattison 3 axis auto surface grinder
24" x 72" x 36" mattison 3 axis auto surface grinder

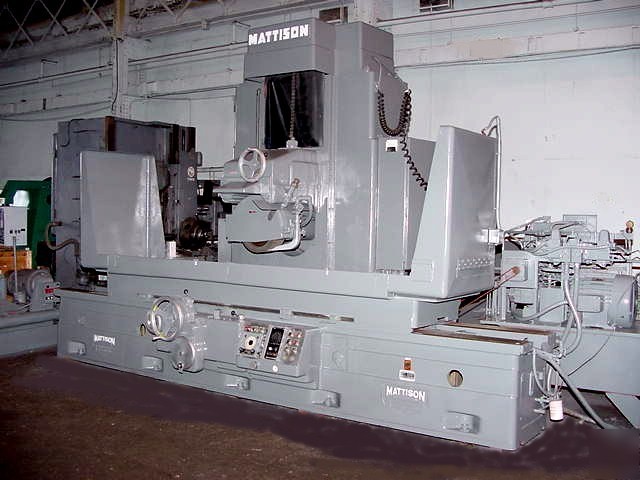

24" x 72" x 36" MATTISON 3 AXIS AUTO SURFACE GRINDER
24" X 72" MATTISON "EXTRA HEIGHT"
W/AUTOMATIC INCREMENTAL DOWNFEED
SERVICED BY THE MANUFACTURER'S TECHNICIAN,
MR. JOE BLANCHARD - FIELD ENGINEER
OF BOURN & KOCH - MATTISON GRINDERS
WIDTH & LENGTH GROUND .................. 24" X 72"
VERTICAL CAPACITY UNDER 20" WHEEL ............ 36"
LONGITUDINAL TABLE TRAVEL ................... 84"
INFINITELY VARIABLE TABLE SPEEDS .. UP TO 125' FPM
AUTO CROSSFEED FEED INCREMENT ........ 1/32" TO 3"
AUTO DOWNFEED INCREMENT FROM ..... 0.004" - .0002"
VERTICAL HANDWHEEL GRAD. ................. 0.0001"
SPINDLE MOTOR ............................ 30 H.P.
HYDRAULIC SYSTEM MOTOR ................... 10 H.P.
GRINDING WHEEL ................... 20" DIA. X 6"W
APPROX. MACHINE WEIGHT: 42,000 LBS.
APPROX. DIMENSIONS: 26'L-R X 9'6"F-B X 11'3"'H
HEAVY DUTY, MEEHANITE CAST IRON
DOUBLE BOX TYPE COLUMN CONSTRUCTION
FACTORY OPTION EXTRA HEIGHT (36" VERTICAL CAPACITY)
AUTOMATIC "INCREMATIC" INCREMENTAL DOWN FEED
ELECTRONICALLY CONTROLLED ("TRAV-A-TROL") AUTO CROSS FEED
24" X 36" ELECTO-MAGNETIC CHUCKS (TWO UNITS)
VARIABLE HOLD NEUTROFIER CONTROL
"BARNES" EXTERNAL COOLANT TANK AND PUMP W/PAPER FILTER
MACHINE IS WIRED PRESENTLY FOR 460 VOLTS
MACHINE HAS BEEN SERVICED BY MR. JOE BLANCHARD,
A MATTISON SERVICE TECHNICIAN EMPLOYED BY THE
NEW OWNER OF MATTISON GRINDERS, THE BOURN &
KOCH COMPANY OF ROCKFORD, IL .... THEIR
WEBSITE IS http:// .
THE MACHINE RUNS FLAWLESSLY AND THE CONDITION
