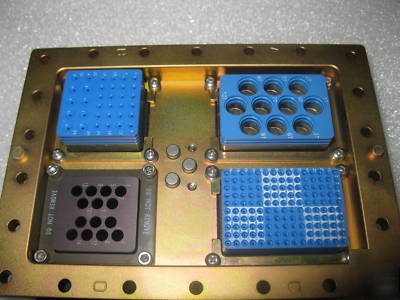

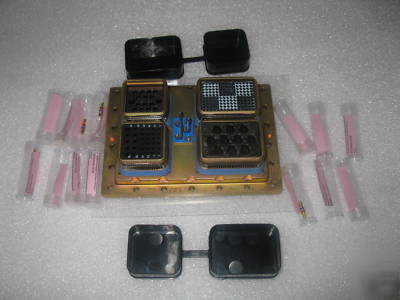

Modular receptacle electrical connector # 4567885H
MODULAR RECEPTACLE ELECTRICAL CONNECTOR
Cross Reference Numbers: GC805MN and GC805MN1

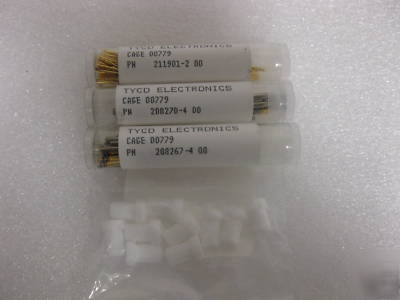

Pins Included: 211901-2 00, 208267-4 00, 208270-4 00, M29504/03/4038, 213364-1 00
5.150 INCHES MINIMUM AND 5.160 INCHES MAXIMUM
3.700 INCHES MINIMUM AND 3.720 INCHES MAXIMUM
1.077 INCHES MINIMUM AND 1.107 INCHES MAXIMUM
0.146 INCHES MINIMUM AND 0.156 INCHES MAXIMUM
150 2ND MATING END SINGLE CONTACT GROUPING 34 3RD MATING END SINGLE CONTACT GROUPING
ROUND SOCKET 2ND MATING END SINGLE CONTACT GROUPING ROUND PIN 3RD MATING END SINGLE CONTACT GROUPING
BACK 2ND MATING END SINGLE CONTACT GROUPING BACK 3RD MATING END SINGLE CONTACT GROUPING

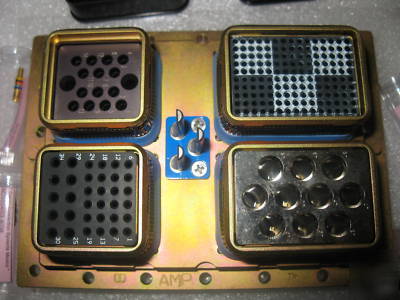

SHELLS "A" AND "D" ARE NOT SUPPLIED WITH CONTACTS. SHELL "A" TAKES COAXIAL SOCKETS AND SHELL "D" TAKES FIBER OPTIC PINS.
CEC PROVISION, HAWKEYE E-2C AIRCRAFT
