Ademco # 269 alarm hold up switch panic robbery 28VDC
Ademco # 269 Hold-Up Switch 28VDC

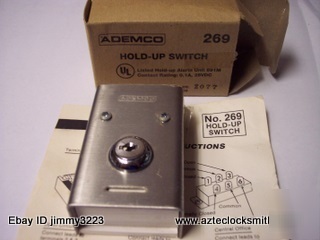

This Ademco hold-up switch is compatible with both Telephone Lease Line alarms and can also be used where simple dry contact NO/NC switch is needed. As you can see in the two pictures there is white in the view window when the unit is not triggered. This changes to red in the window when the bottom is pressed and the contacts triggered. The unit will stay this way until the key is inserted and rotated to reset the unit. The unit has holes in the bottom for mounting to the underside of a counter, and has a wire access hole in the back for your connections. The front face of the unit is stainless steel and still has the plastic protective cover on it. This unit comes with 1 key. The switch is a DPDT with a Max contact rating of 28VDC and 100mA Current rating.
