> 300MW 635NM laser diode c-mount package

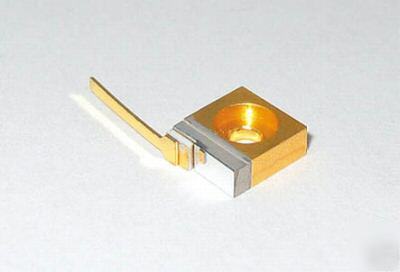

300MW 635NM laser diode c-mount package
wavelength temperature coefficienc(nm/ ):0.2
1. Be sure that the operating current is not exceed the specified operating current, or else which will accelerate aging, shorten lifetime or even damage devices.
2. Increase the current gradually to the specified operating value. For shutting down the laser diode, please decrease the current to zero gradually, and then turn off the power. Pleaser sure that the power supply have no current overshoot at any time. The current overshoot can damage the laser diodes.
3. The 650nm high power laser diode is sensitive to the work temperature. The work temperature should be no more than 30 . It is better if the temperature of the heat sink can be keep at 20 . We advise that the TEC can be used for keep the temperature of the heat sink at 20 .
4. Be careful to keep the facet cleaning. Contamination of facet will result in rapid degradation of devices.
5. The 650nm high power laser diode is very sensitive to static. Please caution about static during operating with the laser diode.
6. Caution! Don t look at the laser light directly, because it s harmful to eyes.
7. A clean, dry and ventilated environment should be available when storing and operation. Dew can damage the laser diodes.
8. 8. The storage temperature is between -10 and 70 .
For more information, please visit . Whoelsale is welcome!
