> 2EA apex PB58A 300 volt op-amp +/- 150V 2 amp high slew
2EA apex PB58A 300 volt op-amp +/- 150V 2 amp high slew
Awesome Op-amp in a TO-3 like package.

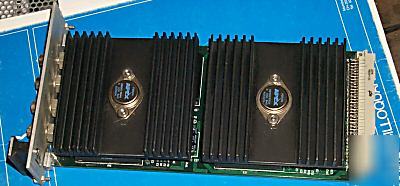

These are like new, tested Apex (now Cirrus) PB58A ("Select" PB58) installed in sockets on eurocard boards.
You get 2 PB58A's, 2 heatsinks, 2 sockets and some support parts on the board.
Retail on the PB58A's alone is $245 Each.
WIDE SUPPLY RANGE 15V to 150V
HIGH OUTPUT CURRENT 2.0A Continuous
PROGRAMMABLE OUTPUT CURRENT LIMIT
HIGH POWER BANDWIDTH 320 kHz Minimum
LOW QUIESCENT CURRENT 12mA Typical
http:// /en/pubs/proDatasheet/PB58U_K.pdf
We do not have schematics for the boards. They are NOT configured as linear amplifiers.
The board may be dusty or scratched and the face and eurocard handle may be damaged. We are selling the nice, tested sets of PB58s / sockets and heatsinks, and then throwing in the rest of the board as a bonus.
