> Oai optical associates 306 u.v. uv power meter i-line
Oai optical associates 306 u.v. uv power meter i-line

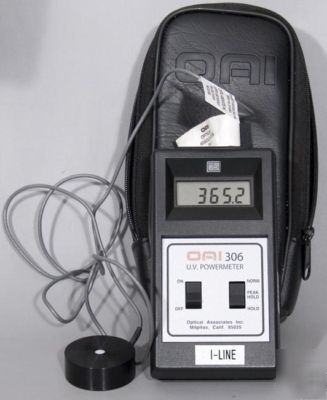

OAI (Optical Associates) 306-001-04 U.V. Power Meter for 365 nm used on I-Line Photolithography Steppers
Specifications are from OAI and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
List Price is: $1,295.00 from OAI
The Meter's Serial Number Tag Reads:
The Probe's Serial Number Tag Reads:
OAI's Model 306 UV Power Meter is a highly reliable direct reading Instrument designed expressly for measuring light intensity at the wafer plane of mask aligners, UV curing light sources, and any other UV light source. Special probes enable measurement of light in the visible range. Calibration accuracy is within 3% and is NIST traceable. Measurement repeatability is within 1%. It is auto ranging from 0.1 to 1999 mw/cm2 full scale and has 1% linearity in this range. This instrument features meter to meter matchability.
Key Features and Specifications:
* Single or Dual Wavelength Probes (I Believe this unit is a Single Wavelength Probe)
* Auto Ranging Digital Readout
* Measures light intensity in mw/cm2
* Choice of probe tuned to desired spectral response
* Accuracy is traceable to the United States NIST
* Optional Analog output Peak hold switch
* LCD display for long battery life
* Picture 2 - Front View of Meter
* Picture 3 - Back View of Meter
* Picture 5 - Serial Number Tag on the Probe
