> AD7674ACP, 18-bit 800 ksps pulsar a/d converter adc (2)
AD7674ACP, 18-bit 800 ksps pulsar a/d converter adc (2)

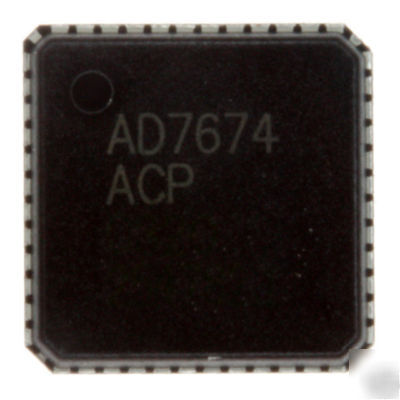

AD7674ACPZ, 18-Bit, 800 kSPS PulSAR A/D Converter, 48 Pin LFCSP, Lead-Free, Quantity 2, Analog Devices.
The AD7674 is an 18-bit, 800 kSPS, charge redistribution SAR, fully differential analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed 18-bit sampling ADC, an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports.
The AD7674 is hardware factory calibrated and is comprehensively tested to ensure such ac parameters as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.
It features a very high sampling rate mode (Warp) and, for asynchronous conversion rate applications, a fast mode (Normal) and, for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput.
* 18 Bits Resolution with No Missing Codes
* No Pipeline Delay ( SAR architecture )
* Differential Input Range: 5 V
* INL: 2.5 LSB Max ( 9.5 ppm of Full-Scale)
* Dynamic Range : 102 dB Typ
* S/(N+D): 100 dB Typ @ 10 kHz
* Parallel (18, 16 or 8 bits bus) and
* Single 5 V Supply Operation
- 83 mW @ 500 kSPS (Impulse)
* High Dynamic Data Acquisition
* Geophone & Hydrophone sensors
