Stroke sander woodworking

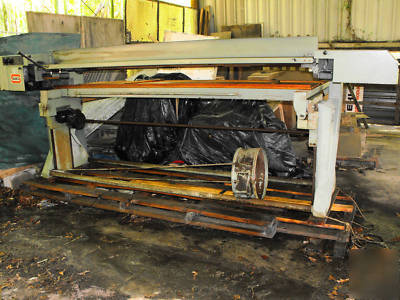

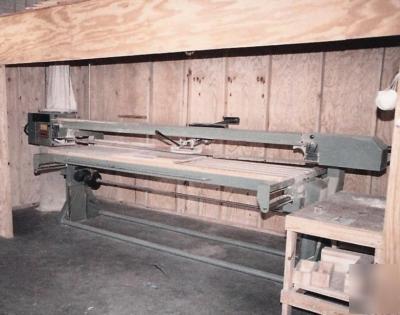

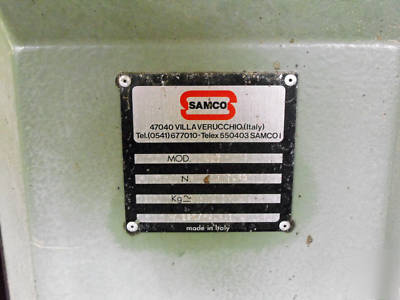

This is a SAMCO long belt stroke sander, Model LLT. No IT.43. I believe unit was new in 1983-84, when first used in a wood shop until 1995 with light use. It has been in storage since 1995. The unit now has mild to light surface rust (due to humidity during storage) but should not be a major restoration problem. There are some belts included but may or may not be servicable due to age. The last picture is the original installation and its condition at that time. It was operating fine when removed.

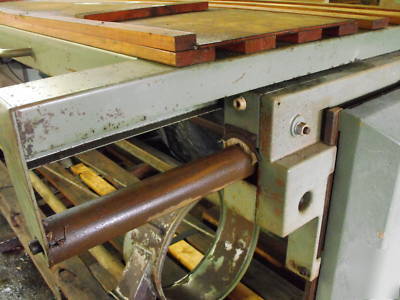

The sliding workkpiece table is 125 inches long and 32 inches wide. It is manually operated in and out.

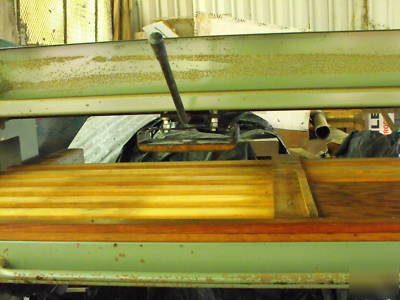

The counter weight balance manual platen holds the abrasion belt on the workpiece while the table moves it in or out manually.

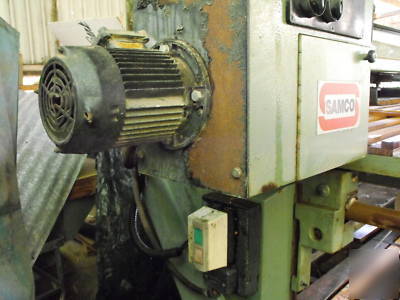

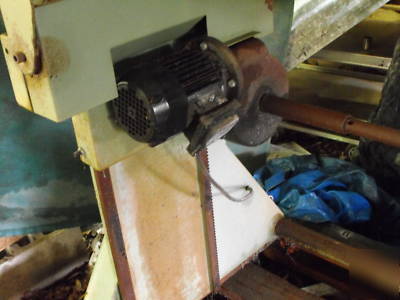

It has 3 motors all 3 phase 220volts , 60 HZ, Main belt drive is 5.5 HP, 1 Hp for dust vacuum, and the third is for powered raiseing and lowering the workpiece 10' by 32" table; from 0" to 24".
An attachable frame to hold the dust collection bag and filter bag is included. You may need to repair or replace the filter bag.
