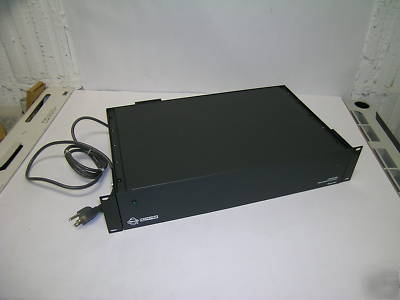

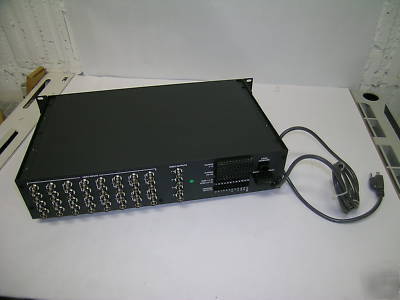

Pelco CM6700-MXB2 matrix bay 16IN x 2 out
Matrix switcher/controller. Provides switching and control for 16 inputs and up to 2 monitor outputs. 120 VAC.
The CM6700 Matrix switcher/controller is a very affordable, highly versatile, full-featured cross-point matrix switcher. The CM6700 provides switching and control for 16 video inputs and up to 4 monitor outputs from any one of up to 8 keyboards.
* 16 Video Inputs; 2 or 4 Video Outputs
* Time (24-Hour or AM/PM Formats); Date (4 Formats)
* Alarm Display Call-up from 18 Direct-Connect Alarm Inputs
* Video Inputs Individually Selectable for Terminating or Looping
* Individual Monitor Sequential Switching with Preset Call
* Compatible with Pelco's RS-422 D or P Protocol
* Camera Control Selection: Coaxitron or RS-422; Individually Selectable per Camera
* Control Genex Multiplexers
* Selectable Data Port RS-232/RS-422/RS-485
* Password-Protected Menu Programming
* User Partitioning to Prevent Unauthorized Viewing
* Switcher Only (KBD100)
* Switcher Plus Multi-Speed Control, Presets, Patterns, Receiver Auxiliary (KBD200A)
* Switcher Plus 3-axis Joystick for Variable Speed PTZ Control, Presets, Patterns, Receiver Auxiliary (KBD300A)
* Optional CM6700-VMC Two-Monitor Expansion Card
