#PA10 phoenix 10" horizontal band saw w/ auto feed '93

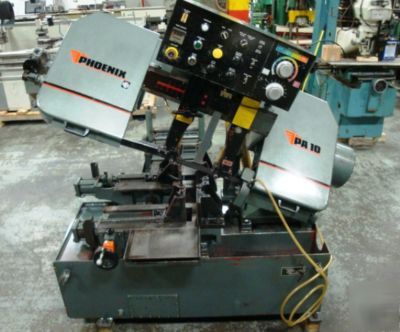

Preowned 10" PHOENIX Horizontal Band Saw With Automatic Feed, Model PA10, S/N DPA 100105 (New 1993)
Blade speeds, infinitely variable
Overall length of automatic feed table
Number of times the shuttle feeds stock forward
before the saw makes a cut
Maximum shuttle travel: single cycle
multi-cycle
Manual or automatic cycle modes of operation
Hydraulically actuated shuttle feed with index handwheel for setting distance shuttle will
travel on each cycle. Index length display is graduated in inches and hundredths of
Piece counter for setting number of pieces or cuts desired
Feed table and machine vises with manual positioning and hydraulically actuated
Hydraulically actuated head raising and lowering mechanism
Rapid approach of cutting head assembly until fast approach device comes into
contact with the work stock
Manually operated blade tension
Self-contained coolant system with 1/8 H.P. pump motor
3 H.P. 3/60/220-440 volt blade drive motor and electrical controls
