Trend aurora plus basic rate isdn handheld tester
Trend AURORA PLUS - Telecom Analyzer

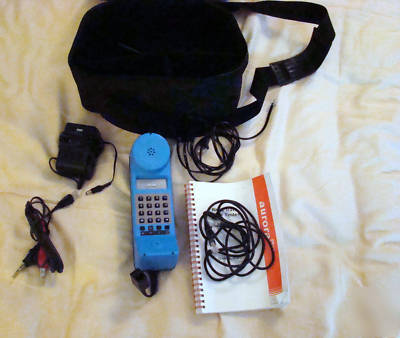

(1) Carrying Case w/ Shoulder Strap
AuroraPlus is an easy-to-use hand-held Basic Rate ISDN tester for the communications technician who needs a rapid and reliable, yet easy-to-use installation tool. Operated through a simple menu interface, the AuroraPlus can locate faults and isolate problems quickly and easily.
The AuroraPlus can test most ISDN call and connection types at the U-interface and on the S-Bus, including point-to-point and point-to-multipoint operation.
In both modes it simulates the interface activity of Terminal Equipment (S-Bus) or the combined functionality of the Network Terminator and associated terminal (U interface). It has Fixed Links mode to allow testing between PBX without protocol.
The standard protocols are Euro-ISDN (ETSI), with VN4 or 1TR6. Other protocols can be supplied. In addition the
AuroraPlus can verify and test D-Channel X.25 provision.
AuroraPlus with battery power, also provides the capability to perform POTS monitoring and testing. For the installation engineer who may need to identify individual circuits in wiring bundles which contain a mix of technologies, there can only be a benefit in not changing equipment.
* support for multiple protocols, including National ISDN, AT&T custom, and northern Telecom custom
* availability of multipule tests, such as dual simultaneous B-channel, D-channel packet, and bit error rate (BERT) tests
* test setup (protocol, SPIDs services, etc.) stored in non-volatile memory
* easy to follow menu-driven display for simplified operation and programming
* ability to enter user-specified calling party number and subaddress
* support for diverse services: voice, facsimile an data
* far-end and near-end block error displays
* call redial, speed dial, call waiting, and display of dialed number
* display of cause codes, as well as control and status information
* self-test capabilities to aid in troubleshooting the unit
* as an option, the ability to test standard analog lines
