> Marwin 5-axis cnc traveling gantry bridge mill
Marwin 5-axis cnc traveling gantry bridge mill

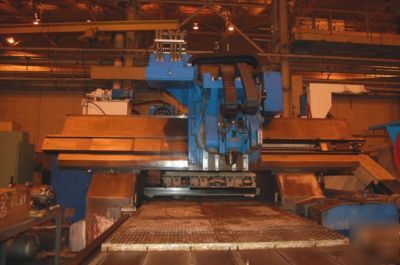

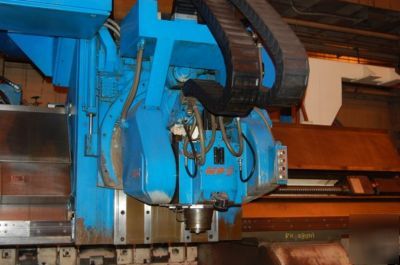

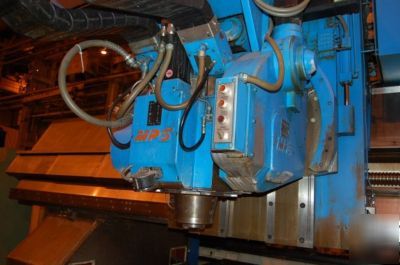

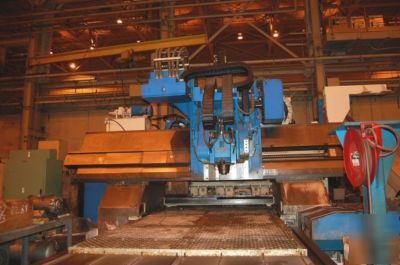

Marwin 5-Axis CNC Traveling Gantry Bridge Mill
Allen Bradley 8600 7-Axis CNC Control
32 Station Automatic Tool Changer
Y-Axis Travel ......................... 143.35"
X-Axis Travel ......................... 512.50"
Z-Axis Travel ......................... 28.4"
W-Axis Travel ......................... 4"
A-Axis ................................ +/- 46 Degrees
B-Axis ................................ +/- 46 Degrees

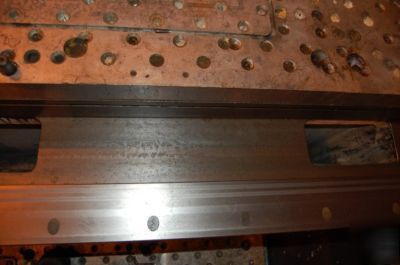

Table Size ............................ 92" x 534"
Distance Between Housings ............. 98.42"
Height Under Rail ..................... 27"
Spindle Speeds, 3-Ranges .............. 200-12,000 RPM
Spndle Taper .......................... #45
Bed Width ............................. 101"
Length of Each Bed Section ............ 144"
X-Axis ................................ 0 to 788 IPM
Y-Axis ................................ 0 to 590 IPM
Z-Axis ................................ 0 to 394 IPM
W-Axis ................................ 0 to 200 IPM
A & B Axes ............................ 0 to 600 Deg/minute
Allen Bradley 8600 6-Axis CNC Control
Inductosyn Scales on W,A, and B Axes
Resolver Feed Back on X,Y, and Z Axes
Inspect In Our Philadelphia Warehouse
