> LMD18201 h-bridge motor driver power ic 3A 55V- qty:2

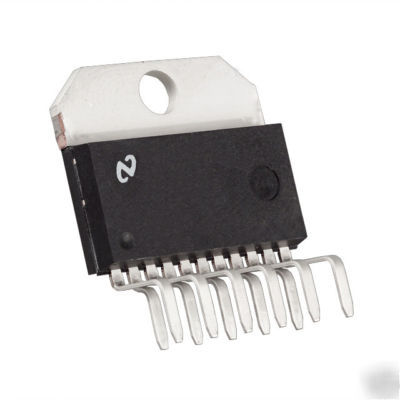

LMD18201 h-bridge motor driver power ic 3A 55V- qty:2
3A 55V DMOS Full Bridge Motor Driver
This is an LMD18200 without the current sensing integrated
3A continuous output Current
Operates at supply voltages up to 55V
Low RDS(ON) typically 0.33 per switch
TTL and CMOS compatible inputs
Thermal warning flag output at 145 C
Thermal shutdown (outputs off) at 170 C
Internal charge pump with external bootstrap capability
