> Falcon W301 privacy lever lock dane 626

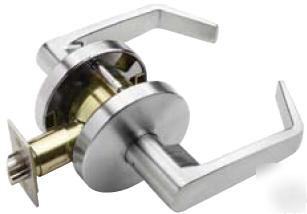

Falcon W301 privacy lever lock dane 626
Falcon W301 Series Privacy Lever Lock
**F76-2**ANSI/BHMA A156.2, Series 4000, Grade 2
* Outside lever is locked by push button on inside lever.
* Rotating inside lever or closing door releases push button and frees outside lever.
* Inside lever is always free.
* Emergency release in outside lever unlocks door.
lever or closing door releases
Door Thickness: 1-3/8 to 1-3/4 standard
Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel
Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into
Springs: Springs are stainless steel. Two nickel silver keys furnished standard
Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent
Keyways: None. Emergency release in outside lever unlocks door.
Trim: Roses are 3-5/8 diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts
Latches: 1/2 bolt projection made of stainless steel and UL listed for 3-hour door assemblies.
Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8 backset with 2-1/4 x 1 latch faces or 2-3/4 backset with 2-1/4 x 1-1/8 latch faces
Strikes: 4-7/8 x 1-1/4 ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
Screws: Furnished with combination screws for use in wood or metal doors and frames
ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2
Solid, pressure-cast zinc levers
Wrought brass or bronze roses over steel
Conventional cylinders or interchangeable core keying compatible with SFIC products from Falcon or other manufacturers
