Clearance 32X-400X metallurgical trinoc microscope
EPI - ILLUMINATION METALLURGICAL
* Upright Trinocular Metallurgical - Metallographic Microscope!
* Upright Design (Objectives Above the Stage).
* Epi-Illumination Microscopy System: Light From Rear Housing goes through the Horizontal Shaft, Reflects Down through Objective to the Specimen, Reflects off the Specimen, and Back into the Objective and then to the Eyepieces. Also known as Reflected Light Microscopy.
* Six Magnifications: 32x, 40x, 80x, 100x, 320x, and 400x.
* Two Eyepiece Sets Included: Wide Field 8x and Wide Field 10x.
* Three DIN Objectives: 4x (Achromatic), 10x (Achromatic), and 40x (Plan).
* Spring Loaded 40x Objective to Protect Objectives and Specimens.
* Maximum Distance From Bottom of Longest Objective to Top of Stage: 28mm
* Coarse Adjustment Travel Range: 30mm (Stage Movement Distance Up/Down).
* Total Overall Height of Microscope: 422mm.
* Instrument Weight: 12.5 lbs.
* 5 YEAR Manufacturer's Warranty on Microscope and 1 YEAR on Camera!
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.

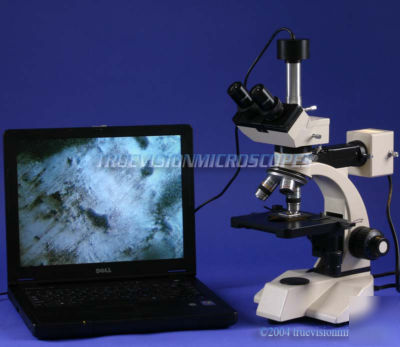

Connects Directly to Computer!
This Included Camera obtained these photos!
Great Quality Digital Imaging.
US Penny - Lincoln Sitting in Memorial
