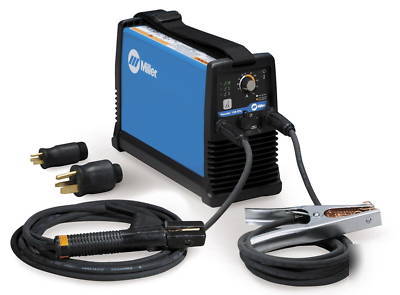

Miller maxstar 150 sth tig 907136 w/ mvp plugs
The Maxstar 150 STH uses advanced inverter technology to put a complete DC TIG or Stick welding package in your hands. All you need is some filler materials and/or shielding gas and you are ready to weld.
Maxstar 150 STH weighs only 14 lbs and has a convenient carrying strap which makes it is easy to use in the work shop and out in the field.
* High Frequency TIG starting
* Pulsed TIG welding with four fixed pulse frequencies
* Fan-On-Demand operates the cooling system only when needed
* Includes 7-1/2 ft (2.3 m) input power cord
* Miller's True Blue Warranty; 3 years - parts and labor
* Remote control capabilities
New Low OCV Stick is a simple design that reduces the open circuit voltage to 13 volts when the welding power source is not in use. This circuit design is now built into the Maxstar 150 STL eliminating the need for add-on voltage reducers.
Auto-Link - Automatically links the power source to the primary input voltage being applied (115V or 230V) or (230V or 460V), without the need for manually linking primary voltage terminals.
Thermal Overload Protection - Internal components are protected from damage by thermal overload protection which automatically shuts down the unit if duty cycle is exceeded or air flow and cooling are restricted.
New! Miller's exclusive multi-voltage plug (MVP ) allows connection to 115 or 230 V receptacles without tools - choose the plug that fits the receptacle and connect it to the power cord.
* Power source with shoulder strap.
* 13 ft (4 m) Stick Electrode Holder.
Quick Specs: Maxstar 150 STH
Input Power Requires 1-Phase Power
Rated Output 80 A at 23.2 VDC, 115 VAC
Output Power Range 5 - 110 A (DC), 115 VAC
Light Industrial Applications
