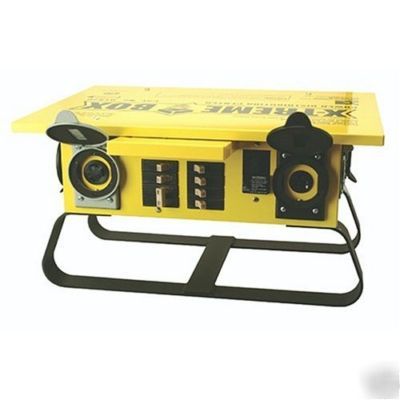

Coleman cable 1970 xtremebox portable power distributor
* Temporary Power DistributionBox
* 50 amp/125/25 volt inlet and outlet
* 6-20 amp/120 volt standard straight blade NEMA 5-20 outlets
* All outlets circuit breaker protected
* All 120 volt outlets are GFCI prodected
Xtreme Box, Portable Power Distribution (Straight blade) Box provides a simple, quick way to provide power to industrial and residential jobsites. It effectively reduces the labor costs involved in establishing power panels and GFCI's on the jobsite. User simply powers the box with a 50amp, 125/250 volt power supply cord.The power is then broken down into useable, 20 amp, 125 volt standard outlets for power tools and other jobsite related equipment. The Xtreme box has six, 125 volt 20 amp standard, straight blade outlets and one NEMA 30 amp, 250 volt locking outlet. All outlets are circuit breaker protected and the six 125 volt outlets are GFCI protected. The GFCI's protect the operator against electrical shocks caused by ground faults or open neutral conditions. All outlets have weather-resistant covers. The safety yellow box is made from Heavy-gauge carbon steel and the reinforced sled base keeps the box off the ground.
* Power inlet: 50A 125/250V California style twist lock flanged inlet with integral cover
* Power outlets: (1)50A 125/250V California style twist lock receptacle, (1)NEMA L6-30R 30A 250V twist lock receptacle, (6)NEMA 5-20R 20A 125V receptacles
* Over current protection: 50A receptacle - none, 30A receptacle - 30A circuit breaker for each ungrounded conductor, 20A receptacles - 20A circuit breaker for each receptacle
* Ground fault protection: Individual Class A GFCI for each 20A receptacle
* Over-voltage protection: Provided by GFCI on each 20A receptacle
* Enclosure type: NEMA Type 3R, rainproof
* Enclosure material: Carbon steel, protected by e-coat and yellow exterior paint
* Enclosure base: Carbon steel, black powder coat finish
* Receptacle covers: Thermoplastic on all receptacles
Product Dimensions: 22 x 16 x 12 inches
