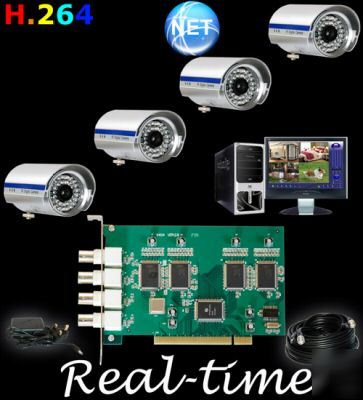

4CH 100/120 dvr card+4OUTDOOR sony ccd ir cam kit h.264
This is a brand new Digital video recording Surveillance System PC Based, The camera sensor is Sony 1/3"
Super Had CCD, providing the very sharp and high-resolution (420TV lines) vivid images. It has total 26 pcs
high-powered IR LED, providing night-vision capability to cover objects up to 80ft distance. The body is built
by solid aluminum with sun-visor for both indoor and outdoor use. with Total frame rate 100fps in PAL/120fps
in NTSC and the PHILIPS SAA7130 chipset, this DVR System provide the hi-performance real-time digital
video recording. And give you 9-bit ADCs image quality and much more smooth video via the Internet. Ideal for
home and business surveillance applications.
Full refund if you are not satisfied with it
9-bits ADCs super high quality
H.264 optimized (high recording definition, especially when there is intense movement)
100 fps in PAL, 120 fps in NTSC.
640 X 480, 352 X 288, 320 X 240
640X 480, 352 X 288, 320 X 240
8mm (3.6mm, 6mm, or 16mm avail at no extra cost)
* Each channel Image color can be adjusted independently by software.
* Support insert 4 cards in the same PC at most, form 16 channel real time monitoring, and can also support mix inserting mode ETHER9808, to form 12 channel monitoring.
* Multi screen monitoring, 1,4,9,16,25, 36 split Screen available, support rotate display.
* Support multi-hard disks cycle recording.
* Recording both flow trends yard and fix yard are available.
* Intelligent searching for historical DVR files, up to 16ch playback.
* Multi-user's authority management setup, support to set up user's operating authority.
* Support motion detection trigger video recording, sending E-mail (monitoring pictures in the enclosure), sending alarm by phone, and by sound.
* Setting up motion detection area discretionarily, the sensitivity is adjustable.
* Through IE realize such perfect network management functions as remote spot monitoring, remote historical playback, remote spot video recording, remote historical video recording, etc.
* Support Intranet IP to remote monitoring.
* Support one IE remote monitors several DVR of different IP.
* Support one IE remote monitors several different DVR within the same IP.
* Support the watermark of the characters and time, the particular format of video files prevent being edited, the security is high.
* The video file supports electron enlarge, taking pictures and instant print and exe format back up.
* Support local and remote PTZ control.
* High speed network transmission.
* Superior image clarity ,built with 9-bit ADCs
* Easy to installation and use GUI (Graphical User Interface).
* Day/Night, outdoor/indoor, waterproof
An IBM compatible PC is recommended
Intel's CPU is recommended
Motherboard on Intel chipset is recommended
At least 128M of RAM (256M required for 16 cameras and above)
At least 32M of RAM for display adapter. ATI Radeon 7000 DDR and above, Nvidia Geforce series are recommended (TNT2 Mode 64 supports only 4 or less screen mode)
Windows 2000, Windows XP and Vista( NTFS file system is recommended, Windows 95, 98 do not support)
Windows Directx9.0 is required
Latest Display adapter driver
Friendly Software Interface and system architecture
