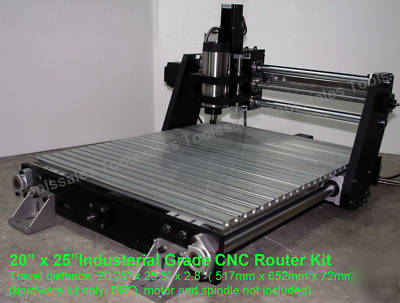

22X30" cnc mill router kits industrial grade engraver
NEW Product of 2010. Cutting area of 20 x 25 Large size industrial grade CNC router kit
This is not a toy kit that you may be around the market, All parts are industeral grade that use in production class machine. The large cutting are ( measure spindle center to center) 20 x 25 combine with slot-table, double ball bearing, offer a real production ready set up for your production need.
Don t be confuse of the low price of this kit compare with other entry level CNC router, We package this excellent router kit with best in class component that you only can find in the commercial high grade machine. Often machine cost 20x more.
Machine can work with various material, hard wood, plastic, aluminum ( with coolet), depend on your spindle motor.
All machine aluminum parts. Heavy duty build ensure durability and capability for production environment.
All X,Y and Z moving parts use High Precision Lead screw and ball bearing system

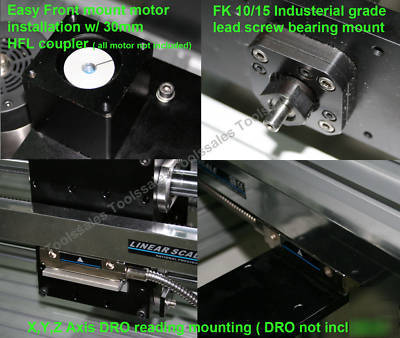

High precision Industrial grade double bearing lead screw mounting block. ( FK10. FK15) which only can find in high end CNC machine.

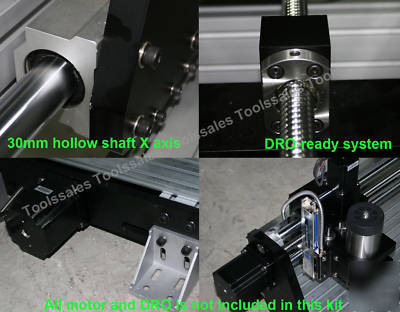

Light weight hollow support shaft reduce over all weight.
NEMA 23/34 motor ready mount, easy direct mounting, Detachable coupler for easy motor mounting and installation

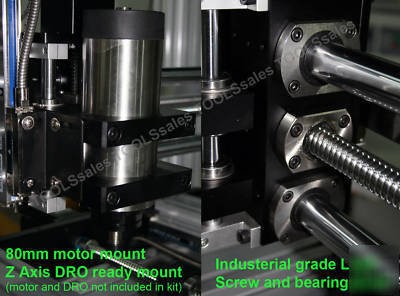

80mm spindle 1/2 circle clamp mounting
Replaceable Table top rail with clamping slot. Flexible with custom parts clamping.
Table support with 80 x80mm aluminum channel, flexible for support various mounting method.
Optimized design to maximized the table cutting area
1. All machine aluminum black anodized finishing parts. Tap and thread ready for assemble.
2. Hollow light weight support shaft
3. All support bearing and bearing block
5. X,Y,Z lead screw with FK industrial series support bearing block
6. X,Y,Z 30mm front mount coupler
7. 13 pc x 60mm clamping table top.
8. All machine screw for assemble the complete kits
Not included, but provision with below upgradeable features:
Kit doesn't included any motor and electronics.
Mounting hole for limited switch on x,y,z both end
DRO mounting for all 3 axis. Optional DRO kits are available with mounting kits.
X and Y lead screw has 8mm end for easy encoder installation ( optional mounting plate required)
Spindle motor not included, kit is 80mm standard spindle motor mounting, other custom size available upon request.
we had made upate to this system and now with more advance feature as below:
Update 2.0 ( 2010 april version):
1.upgrade to use double preload nut, Zero back lash on all axis.
2. the Z motor use NEMA34 now.
3. Z Axis use linear rail, shorten the distance between spindle to support rail.
Over all size (without motor) : 27.9 x 34.7 x18.25 ( 710mm x 882mm x 464mm)
If NEMA34 and 23 motor installed, the over all size is
30.5 x 37.5 x 21.4 ( 779mm x 951mm x 543mm).
Table Size: 22.8 x 30.7 780mm x 580mm
Cutting size (spindle center to center): 20.5 x 25.5 x 2.8 ( 517mm x 652mm x 72mm)
Lead screw turn ratio :; X & Y 5mm pitch ( per turn) Z axis 4mm pitch ( per turn)
Standard coupler suit the motor shaft diameters is 8mm (Z) and 12mm (X,Y). other shaft size ( 1/4 , 3/8 10, 12mm etc) are available without extra cost.
What will you need to get the kits start cut your parts:
This kit design to provide a solid build, industrial quality router for various application,
1. 3 stepping motor (or servo) with NEMA34 or xx mounting for X,Y,Z axis
2. Stepping driver and power supply.
3. A wiring or board between the driver and limited switch to Parallel port
4. PC with software ( mach 3, linux CNC etc) that covert the G code to the Parallel port signal to drive the motor driver
5. Spindle motor with 80 mm diameter, we offer 2.5kW 24000rpm spindle motor with speed control. Please contact us for price.
