2 browning single-strand bushed-bore sprocket H40P28
2 BROWNING SINGLE-STRAND BUSHED-BORE SPROCKET H40P28
with One Browning P1-1 Bushing

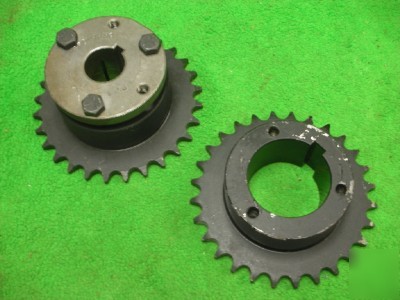

This listing is for 2 sprockets and 1 bushing in good general condition. Designed for use with ANSI 40, 50, and 60 pitch roller chain. Sprocket has through bore of 1-15/16" diameter with 3/8" keyway. Bushing makes through bore 1" with 1/4" keyway.
40 Outside Dia. (In.)4.740 Pitch Dia. (In.)4.466 Number of Teeth28 Bushing RequiredP1 Max. Bore (In.)1/2 - 1 3/4 Length through Bore (In.)1 15/16 Keyseat Size (In.)Standard MaterialHigh Carbon Steel Alloy
