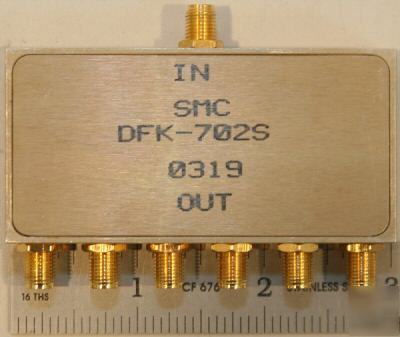

Synergy dfk-702S power divider 5-200 mhz 6-way 0 degree
Synergy DFK-702S Power Divider 5-200MHz 50 6-Way 0
* Frequency Range: 5-200 MHz
* Isolation LB Typ/Min (dB): 30/25
* Isolation MB Typ/Min (dB): 28/23
* Isolation UB Typ/Min (dB): 25/20
* Insertion Loss LB Typ/Max (dB): 0.4/0.7
* Insertion Loss MB Typ/Max (dB): 0.5/0.8
* Insertion Loss UB Typ/Max (dB): 0.8/1.2
* Phase Unbalance MB Max (Degrees): 3.0
* Phase Unbalance UB Max (Degrees): 4.0
* Amplitude Unbalance MB Max (dB): 0.3
* Amplitude Unbalance UB Max (dB): 0.4
http:// /products/powerdividers/pdf/6-way.pdf.
