> 30" x 3HP spdl supermax ycm-40 cnc vertical mill, prot-
30" x 3HP spdl supermax ycm-40 cnc vertical mill, prot-
30" X 3HP Spdl Supermax YCM-40 CNC VERTICAL MILL, Prot-
30" X Axis 3HP Spindle Supermax YCM-40 CNC VERTICAL MILL, Prot-Trak CNC 3-Axis Control,Handwheels,

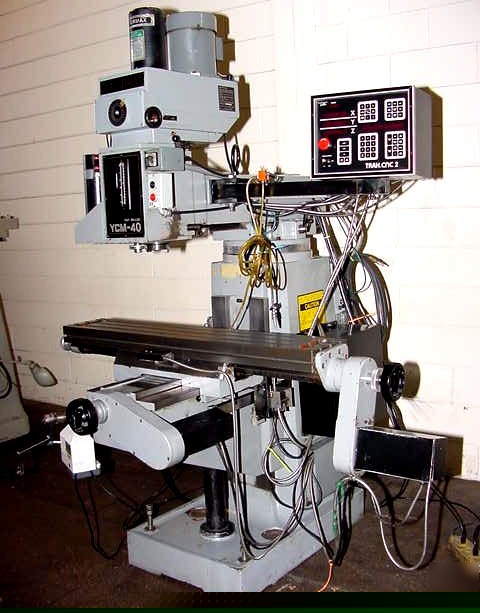

SUPERMAX 3-AXIS CNC VERTICAL MILL
MODEL: YCM-40, S/N: 810122, NEW: 1988
TABLE SIZE ............................ 9" x 49"
TABLE CROSS TRAVEL (X) ................ 30"
SADDLE TRAVEL (Y) ..................... 15"
VERTICAL KNEE TRAVEL (MANUAL) ......... 15"
QUILL TRAVEL (Z) ...................... 5"
QUILL DIAMETER ........................ 3.94"
SPINDLE TAPER ......................... #40 STD
LOW ............................. 60-500 RPM
HIGH ............................ 500-4200 RPM
TABLE LOAD CAPACITY ................... 550 LBS.
APPROXIMATE FLOOR SPACE ............... 73-1/8" FB x 104 LR
APPROX HEIGHT ......................... 85"
APPROX WEIGHT ......................... 2,950 LBS
SOUTHWESTERN INDUSTRIES PROTO-TRAK 2 CNC CONTROL
BALLSCREWS & SERVO MOTORS FOR THE THREE AXIS
POWER FEED FOR RAISING & LOWERING KNEE
