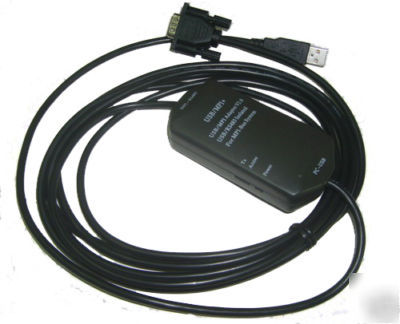

Siemens usb/mpi+ S7-300/400 plc programming cable - uk
Isolated USB to MPI Programming Cable for S7-300/400 - Version 4!! - With Step 7 Software!!
Optoelectronic isolated USB to MPI Siemens S7-300/400 PLC Programming adapter cable. With 3 meters cable length. With communication indicators, can replace Siemens 6ES7 972-0CB20-0XA0. Automatically adjusts the communication speed from 19.2Kbps to 115.2Kbps for the PC port. Automatically adjusts the communication speed from 19.2Kbps to 187.5Kbps for the MPI interface.It doesn't support profibus function. Version 4 now used original Siemens MPI driver!
Simatic Step 7 software supplied with the cable, software is not official packaged version with paper license, but is fully working and Vista (Ultimate or Business) / XP pro compatible.
This cable uses USB drivers for MPI connection, there is no USB to RS232 conversion for connection!! This is a direct USB to MPI Adaptor which even uses original Siemens drivers!
This is Version 4.0, it features better quality components and automatic adjustment of baud rates on both sides, the price is a little higher because of these added features. Most suppliers do not offer this version, and will supply you with the cheaper inferior version 1.0.
OS Compatability: Windows2000/Windows XP/Vista
Supported Software: STEP7 V5.2 and higher
Fully compatible with USB V1.1 and USB V2.0
Power supply by both USB main line and MPI programming port(Total 1W).with Overcurrent Protection and Surge Protection
High optoelectronic isolation voltage up to 1000VDC
The USB port design with surge protection .The RS485 port design with overcurrent protection and lightning protection(500W)
Baud rate of Com port on PC: 19.2Kbps~115.2Kbps
Baud rate of MPI port on PLC: 19.2Kbps~187.5Kbps
Maximum communications distance: 1000 Meters
Working temperature: -20~+75'C
Please remember that delivery time has been clearly stated above, in some cases delivery can be
much faster, but we do not guarantee faster delivery so please unless the the 5 days is up and you
still have not recieved the item do not contact us about your item not being delivered.
Thankyou for your understanding
Note: We offer second to none after sales support. Also please remember all our cables and adaptors come with 1 years replacement
a seller than knows what they sell, and can support you if you need help.
