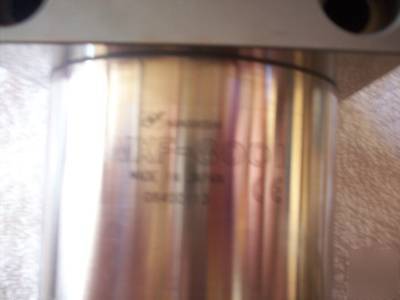

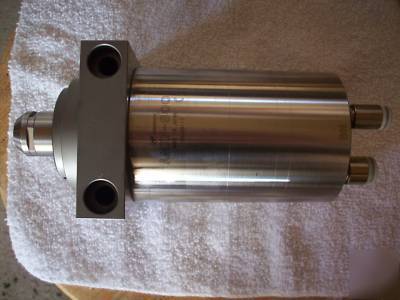

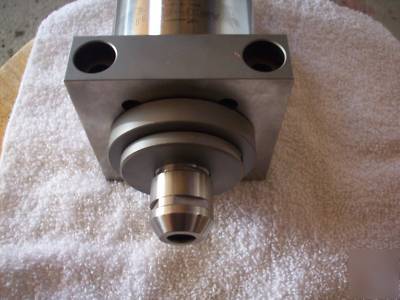

New nsk nakanishi air spindle amxf-801BH in box, cheap
ULTRA PRECISION HIGH POWER AIR MOTOR SPINDLE AMXF-8001BH 3.15" (80mm) 720 min-1(rpm)
The AMX series is a new air motor/spindle its small body incorporates a high torque air motor that allows for large diameter tool machining in very tight locations.
AMX-80 series has 3 speeds available 6,800 min-1(rpm)(80 cN m), 1/1 ratio, 2,100 min-1(rpm)(270 cN m), 1/3 ratio, and 720 min-1(rpm)(820 cN m), 1/9 ratio.
This short body, high torque motor/spindle uses a 190W air motor. The system is perfect for mounting on turret lathes, CNC gang tool lathes, special purpose machines and any other place you need high power and high torque in a small body.
Standard Equipment & Accessories
Intake Air Hose (K-223) : 8 mm x 6 ft
Exhaust Air Hose (K-224) : 10 mm x 3.94"
Collet Nut (CHN-E) : Provided
AMXF-8001BH Air Motor Spindle Specifications
Proper Air Pressure 42~71PSI
Spindle Accuracy Within 2 m
Intake Air Hose 6.0 mm . 8.0 mm (O.D.)
AMX-80 Series (1/9 Ratio) 720 min-1(rpm)
End Mill Capacity 0.236" (*1)
