New macom .5 - 2 ghz directional coupler sma 20 db coup

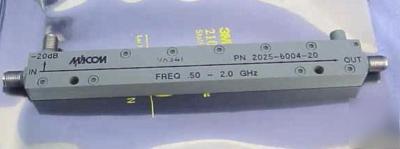

This sale is for a Brand New Un-used Macom (Omni-Spectra) 2025-6004-20 .5 to 2 GHz Directional Coupler
20 dB Coupling, SMA Connections
Frequency Range: 0.5 - 2 GHz
Input Power Average 50 Watts
Maximum Insertion Loss is 0.3 dB
Maximum VSWR (Primary & Secondary) 1.15
Temperature Range: -54 C to +125 C
Meets MIL-E-5400 Environments
Click Here for Ma/Com Data Sheet
