> New ~~ 0-.50" micrometer linear stage daedal CR4052 -- --

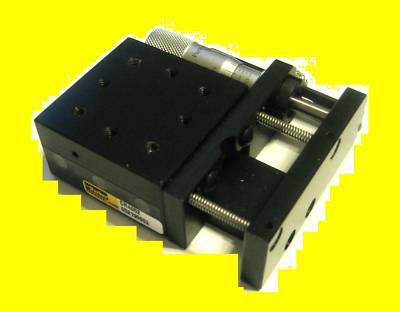

New ~~ 0-.50" micrometer linear stage daedal CR4052 -- --
Micrometer 0-.5 cross roller positioning stage,
Brand New. (I had to replace with Metric unit)
About Crossed Roller Positioners
Parker Daedal crossed roller positioners combine a crossed roller slide with a drive mechanism. The crossed roller slide is spring loaded against the drive mechanism to provide a constant preload between the drive and the slide. These positioners are available with a number of different drive mechanisms including fine adjustment screw, differential screw, imperial and metric micrometer heads, and digital micrometer heads. The crossed roller bearing system is composed of two rows of rollers. Each roller is alternately crossed at 90 with the next and captured in V grooves, located on the base and top. Since rollers provide a larger (line) contact surface than ball bearings, a crossed roller positioner has higher load carrying capability than a ball bearing positioner of comparable size. These changes also significantly increase the stiffness by increasing the contact area of each bearing. Crossed roller positioners are preloaded to eliminate any side play and to provide a uniform coefficient of friction. Crossed roller positioners are constructed of corrosionresistant black anodized aluminum and high carbon steel. Members are precision machined to assure flatness and parallelism for both top and bottom mounting surfaces. Crossed roller positioners are available in imperial and metric mounting configurations depending on model selection.
Please ask to list any of these additional items:
DIGITAL MICROMETER HEAD 0-1" Range, .001" Grad, Lock Nut
MICROMETER HEAD 0-1" Range, .001" Grad, Lock Nut
Motor, Servo Metric 60mm 200w 14mm x 30mm lg Shaft, .27 HP w/ 13 Bit Incremental or 16 Bit Absolute Serial Encoder
Servomotor Nema 23 400W .500 OD Shaft, .54 Hp, 11.3 Lbs/Inch Torque, 33.8 Lbs/Inch Peak Torque
Motor, Servo Metric 40mm 100w 8mm x 25mm lg shaft, .13 HP w/ 13 Bit Incremental Encoder.
Insight 4000 Vision Camera, Insight 4000 Vision Sensor Camera With Integrated Processor 2 Output 1 Input RS232 And Ethernet Support. PC Server With HTML DOCS And CATS Cable.
Air Slide Table with adjustable stops 8 mm bore, 10 mm stroke
Air Slide Table 8 mm bore, 75 mm stroke (mirrored)with shock absorbers both ends
16 Position Valve Gang Device Net includes 1x SMC VV5Q11-12N7SQ-DKS and 16x SMC VQ1100-5
Drive, Servo PC3403 120/240VAC
Laser Processing Module, 20w co2 light material cutting/engraving
