New thermal receipt printer pos esc retail business


If you're a POS user looking for a thermal printer that benefits from economical running costs AND high quality, this high-speed receipt printer is the machine you're looking for.


The printer benefits from a top notch print mechanism as well as easy to use drop-in paper rolls and quiet, low maintenance, user friendly operation.

  • High printing speed of 160mm/s

  • 2 different print densities

  • Built-in interface provides control capability for a cash drawer

  • Various layouts are achievable when using 'page mode'

  • Characters can be scaled up to 64X the standard size

  • Repeat operation and copy printing made possible with macro definitions

  • Compatible with ESC and POS commands

  • Takes drop in standard size paper rolls

  • Reliable and user friendly

    • Ideal for medium scale operations in the retail or hospitality industry, this is an excellent thermal printer for general Point of Sale applications

    Specifications:
  • Print method: thermal line printing

  • Print speed: 160mm/sec

  • Dot density: 203 dpix x 203 dpi

  • Print direction: unidirectional with friction feed

  • Print width: 72mm, 576 dot positions

  • Characters per line (default): Font A: 48, English, Font B: 24, Chinese

  • Character spacing (default): Font a: 0.25MM, 2 dots

  • Auto cutter: partial (one point left uncut)

  • Paper type: specified thermal paper roll

  • Paper width: 79.5mm ± 0.5mm

  • Paper roll type: max 83mm diameter

  • Paper spool diameter: inner: 12mm, outer: 18mm

  • Supply voltage: +24 VDC 8% (optional power supply)

  • Mechanism life span: 15,000,000 lines

  • Thermal head life span: 100 million pulses, 100Km

  • Auto cutter life span: 1.500,00 cuts

  • MCBF: 52,000,000 lines

  • Operating temperature and humidity: 5˚C to 45˚C (41˚F to 113˚F), 10 - 90%RH

  • Storage temperature and humidity: -10˚C to 50˚C (14˚F to 122˚F), 10 - 90% RH

  • Acoustic noise: 40dB to 50dB (depending if auto cutter is being used)

  • Power input: 100V AC - 240V, 50 - 60Hz

  • Current input: 1.50A max

  • Power output: 60W max

  • Dimensions: 145 x 191 x 140mm

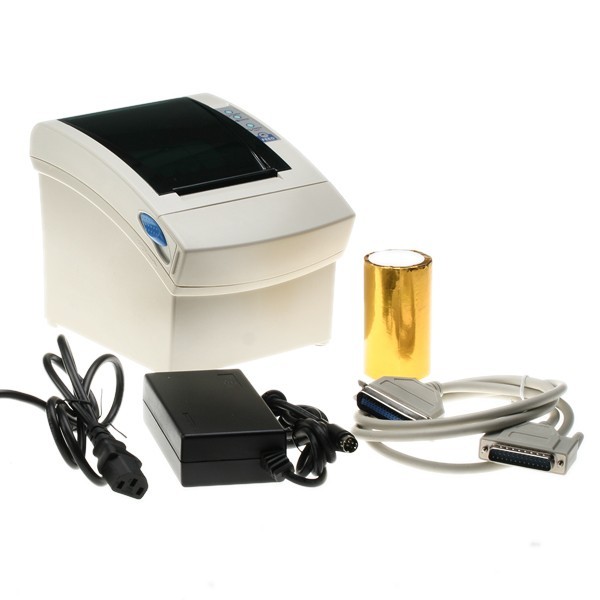

    • The thermal receipt printer is brand new and boxed and includes:
  • 1 roll of thermal paper
