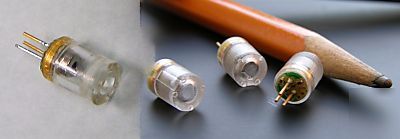

> Laser module with apc diode plastic housing 6.5MM dia.
Laser module with apc diode plastic housing 6.5MM dia.
This is a NEW, State of the Art Module
* ONLY 6.5 mm in diameter X 8.5 mm long
* Utilizes a 650nm, 7 mW laser diode with the APC driver circuit inside the normal diode package. We sell those too, without the housing.
* No more bulky PCB hanging off the back of the module, or taking up valuable space inside the module, making this a very compact module.
* Made by an ISO 9001 diode manufacturer, not a cheap China laser that will die prematurely. These are long lifetime devices.
* Operartes with only about 15 mA of current.
* ~3 mW of laser power output, Class IIIa.
* Surprisingly very nice beam! Well Collimated.
* Another great feature about this module is the fact that the injection molded plastic housing has an integrated collimator lens - all for added cost and space savings for you.
* Please see the data sheet for more details: http:// /html/LMAPCD-650-06.pdf
Look above, under 'Meet the Seller' to see our other listed items.
2008 is our 11th Year. Put our Experience, Low Cost Laser Products, and Free Engineering Assistance to work for your firm. Discounts available for Volume Purchases. We supply laser diodes, components, and modules worldwide. Calll us today !
Ask about our 4 mm diameter APC module in brass.
Easy hook- up- just add 3 volts DC and go. Has standard diode pins. They can be soldered with leads, put into standard PCB's, or plugged into 0.1" header type female sockets (PC mother borad type jumper style)
