> Blodgett DFG50SINGLE convection oven, half size, single

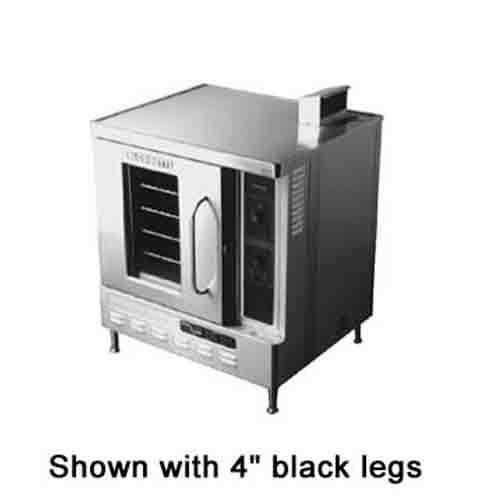

Blodgett DFG50SINGLE convection oven, half size, single
Convection Oven, Half Size, Single Deck, Gas, 27,500 BTU
Two year parts, 1 year labor and 5 year door parts -view pdf
Convection Oven, gas, half-size, single-deck, solid state manual controls, 1-speed fan, (5) racks & (9) positions, interior light, simultaneous operated doors with glass, s/s front, sides & top, 4" s/s legs, 27,500 BTU
* Standard depth baking compartment - accepts 13" x 18" standard half-size
* baking pans in front-to-back-position.
* Stainless steel front, top, sides and back
* Dual pane thermal glass window encased in stainless steel door frame
* Single chrome plated door handle
* Tilt-down modular front control panel
* Aluminized steel combustion chamber
* Five chrome-plated racks, nine rack positions with a minimum of 1 5/8" spacing
* Dual Flow Gas system combines direct and indirect heat
* Electronic spark ignition control system
* Removable dual tube burner
* Pressure regulator and manual gas service cut-off valve located in front control area
* Air mixers with adjustable air shutters
* One control area cooling fan
* Solid state manual with separate dials to control thermostat and timer
