> 12 vdc hydraulic power pack & controller 9-7550&9-7550R
12 vdc hydraulic power pack & controller 9-7550&9-7550R

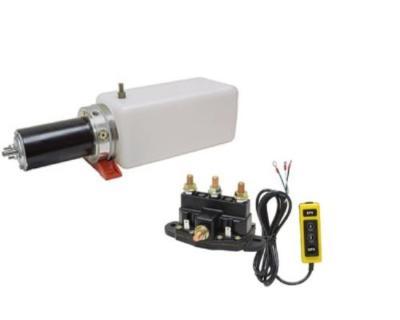

Brand new SPX FENNER 12 volt DC hydraulic powerpack for operating double acting cylinders. Reversible motor for directional control with pilot operated checks for load holding. Compact size with filler/breather on tank that allows vertical or horizontal mounting. Dual non-adjustable relief valves set at 2000 psi maximum for extending and 800 PSI maximum for retracting cylinder. Extended shaft from motor allows emergency override that can be driven from a electric/battery powered drill with performance limited by the power of the drill.
* 1.0 GPM at 1500 PSI at 150 amps
* 2000 PSI max. on extension
* 800 PSI max. on retraction
* 1 gallon tank (3/4 gal. usable)
* Duty int. 1 min. ON/5 min. OFF
* Size 20-1/8" x 7-1/2" x 5-7/8"
Brand new, SPX handheld 2 button remote control and reversing relay. 10' cord, magnets on back for mounting. Requires wiring between relay and powerpack.
