> 10" swg 12" strk parker-majestic a id grinder, power tb
10" swg 12" strk parker-majestic a id grinder, power tb
10" Swg 12" Strk Parker-Majestic A ID GRINDER, POWER Tb

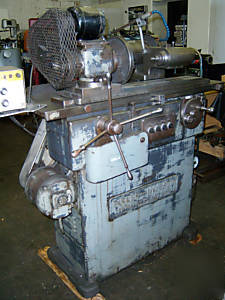

10" Swing 12" Stroke Parker-Majestic A ID GRINDER, POWER TABLE, RECIPROCATOR, I.D. SPDL., FACE PLATE
PARKER-MAJESTIC INTERNAL GRINDER
MODEL: A S/N: 1416-53 NEW: 1953
SWING OVER TABLE........................ 10"
TABLE TRAVEL (POWER FEED)............... 12"
POWER TABLE SPEEDS (4) .......... 12", 24", 36" OR 48" IPM
TABLE TRAVEL WITH RECIPROCATOR.......... 0 TO 3"
(REVERSALS/MIN.)....................... 30, 50, 75 & 100
ANGLE SETTING OF TABLE (MAXIMUM)........ 5 DEGREES
TABLE WORKING SURFACE................... 5" X 33- 1/2"
SWIVEL OF WORK HEAD..................... 90 DEGREES
HOLE THROUGHT WORK HEAD SHAFT........... 13/16"
COLLET CAPACITY OF WORK HEAD............ 5/8" MAX.
WORKHEAD SPINDLE SPEEDS ................ 175, 325, & 425 RPM
TRAVEL OF CROSS SLIDE BY LEADSCREW ..... 2- 1/4"
FULL RANGE OF CROSS SLIDE IS ........... 7"
GRADUATIONS OF CROSS SLIDE HANDWHEEL ... 0.001"
GRAD. OF HANDWHEEL VERNIER DIAL ........ 0.0001"
FLOOR AREA............................. 32" X 62"
APPROX. MACHINE WEIGHT ................ 1,900 LBS.
POWER FEED - THIS FEED IS MOST USEFUL FOR TABLE STROKES
RECIPROCATOR ACTUATED BY MEANS OF A LEVER.
FOR STROKES 0 TO 3" AT 30, 50, 75 OR 100 PER MINUTE
INFINITELY VARAIBLE SPEEDS FOR WORKHEAD PROVIDED BY
ELECTRONIC RHEOSTAT CONTROL OF DC MOTOR
MICRO ADJUSTMENT OF CROSS FEED (.0001" GRAD.)
