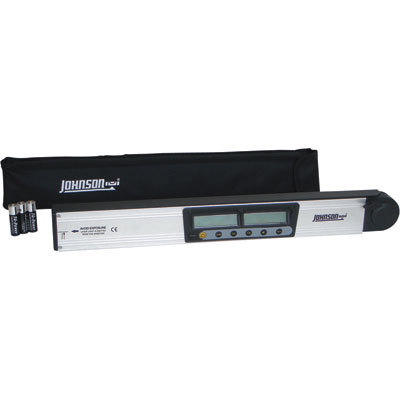

Johnson Level & Tool Digtl Laser Level & Angle Locator
The Digital Laser Level and Angle Locator displays angle and inclination simultaneously, with angle measurements in degrees and a working range (angle) of 0 to 182.5 . Automatic digit inversion for overhead measurements. Magnetic base. Display Type: LCD, Accuracy: Laser: 1/8/50ft., Range (ft.): Angle: 0 -180 , Battery Included: Yes, Battery Type: AA, Dimensions L x W x H (in.): 20.8in. x 2.48in. x 1.57in., Kit Includes: Level, batteries, case, manual Angle inclination in 5 construction languages - units of measure (degrees, percent, mm/m, in/ft in decimal, in/ft in fractional) Automatic shut-off Hold function to hold measurement Locking arm increases length to 3ft., 3 1/2in. Arm can be locked in all positions Visible laser beam to extend working range Laser wavelength: 650nm 10nm Laser classification: Class IIIa Maximum power output: 5mW Accuracy inclination 0.1 for 0 and 90 ; 0.2 for 1 to 89 : Resolution: 0.1 or 0.1% Working angle inclination: 0 -90 Accuracy angle 0.1 Power supply 3 AA alkaline batteries Battery life: Approximately 70 hours continuous use Working temperature: 14 F to 113 F (-10 C to +45 C) Center screw thread 5/8in.-11
