Hp / agilent 6625A recision system power supply

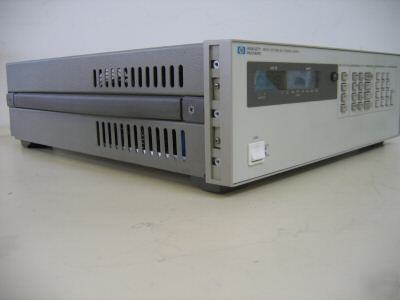

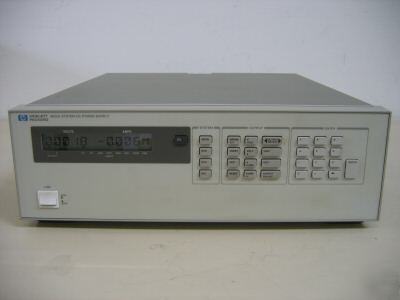

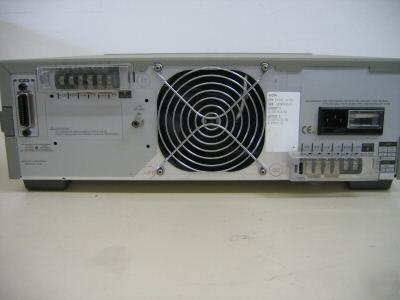

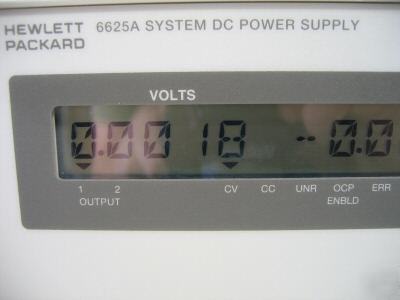

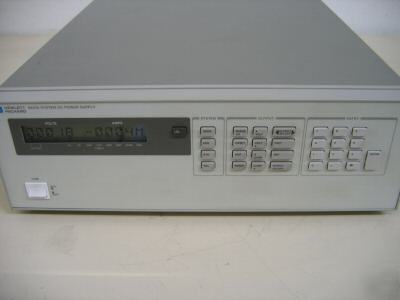

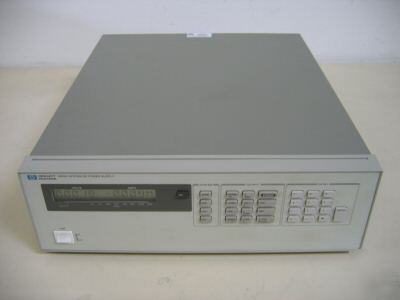

HP Agilent 6625A Precision System Power Supply
* Description: The Agilent 6625A high performance DC Power Supply offers spec and accuracy for test optimization. The precision multiple output, 25W - 50W GPIB 6625A, provides fast, low-noise outputs; dual-range, precision low current measurement; built-in measurements and advanced programmable features; and protection features to ensure DUT safety. The Agilent 50W, dual-output 6625A is a versatile solution that helps improve system accuracy and reduces test time in a 3U high package Features and specifications of the HP Agilent 6625A include:
Output Ratings (1 output each)
* Low-range volts, amps 25W: 0 to 7 V, 0 to 15 mA
* Low-range volts, amps 50W: 0 to 16 V, 0 to 200 mA
* High range volts, amps 25W: 0 to 50 V, 0 to 500 mA 0
* High range volts, amps 50W: 0 to 50 V, 0 to 1 A or, 0 to 16 V, 0 to 2 A
Programming Accuracy (1 output each)
* Voltage 25W: 1.5 mV + 0.016% (low), 10 mV + 0.016% (high)
* Voltage 50W: 53 mV + 0.016% (low), 10 mV + 0.016% (high)
* Current 25W: 15 A + 0.04% (low), 100 A + 0.04% (high)
* Current 50W: 185 A + 0.04% (low), 500 A + 0.04% (high)
Ripple & Noise (1 output each)
* Constant voltage rms: 500 V
* Constant current rms: 1 mA
Readback Accuracy (1 output each)
* Voltage 25W: 0.016% + 2 mV (low), 0.016% + 10 mV (high)
* Voltage 50W: 0.016% + 3.5 mV (low), 0.016% + 10 mV (high)
* +/-Current 25W: 0.03% + 15 A (low), 0.03% + 130 A (high)
* +/-Current 50W: 0.04% + 250 A (low), 0.04% + 550 A (high)
* Cosmetic Condition: Very Good
* Working Condition: Tested Good
